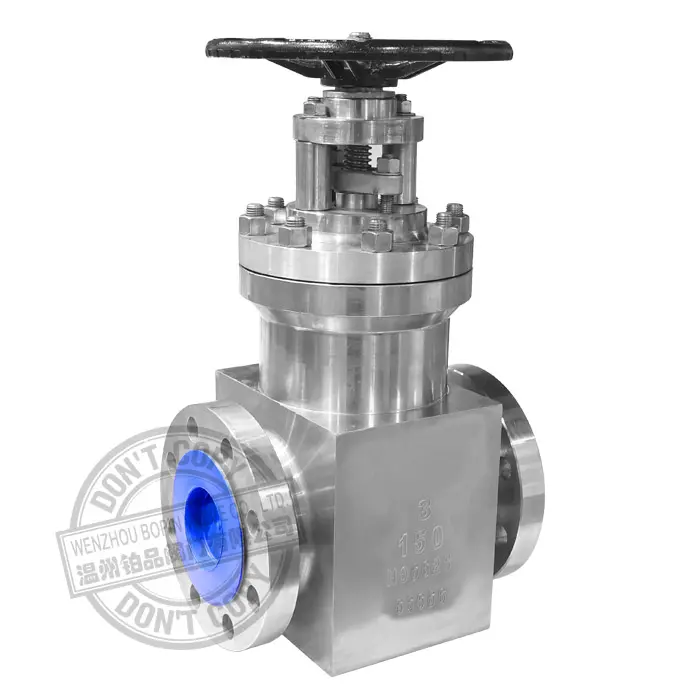

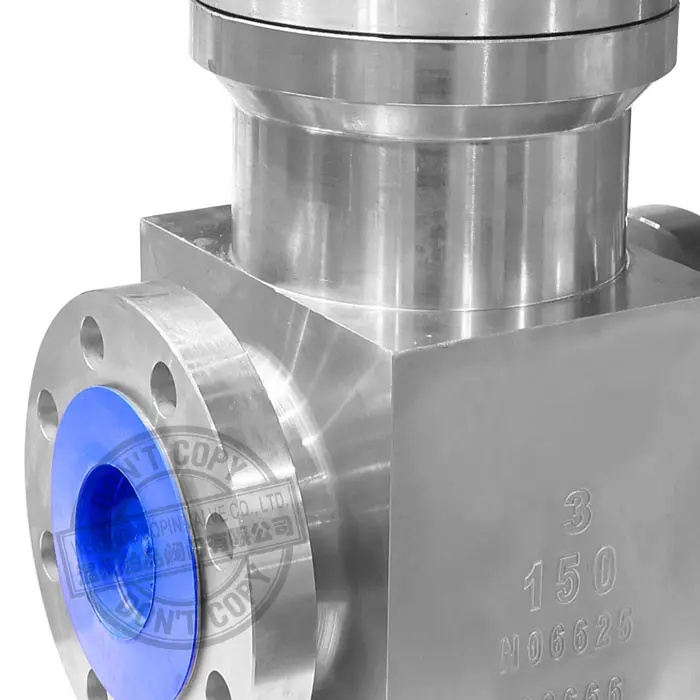

API Forged N06625 Inconel 625 Flange End Wedged Gate Valve
The API Forged N06625 Inconel 625 Flange End Wedged Gate Valve is a premium isolation valve engineered for the most demanding industrial environments where conventional stainless steel or carbon steel valves cannot provide sufficient corrosion resistance or high-temperature performance. Manufactured from forged UNS N06625 (Inconel 625) in accordance with ASTM B564 requirements, this valve combines exceptional mechanical strength with outstanding resistance to oxidation, pitting, crevice corrosion, chloride attack, and aggressive chemical media. Inconel 625 derives its strength primarily from solid-solution strengthening by molybdenum and niobium, eliminating the need for precipitation hardening while maintaining excellent weldability and toughness.
Designed in accordance with API 602, ASME B16.34, API 598, and ASME flange standards, the valve provides reliable shut-off performance for high-pressure and high-temperature process systems. The wedged gate design ensures tight bi-directional sealing, low pressure drop, and dependable operation throughout long service cycles.
Widely used in offshore platforms, subsea facilities, chemical processing plants, LNG terminals, nuclear power stations, marine systems, and sulfur recovery units, the forged Inconel 625 gate valve delivers exceptional reliability under severe operating conditions.
Why Choose Forged Inconel 625?
UNS N06625 is a nickel-chromium-molybdenum alloy containing approximately 58% nickel, 20–23% chromium, 8–10% molybdenum, and niobium additions. This composition provides remarkable resistance to a wide variety of corrosive environments while maintaining excellent mechanical properties across a broad temperature range.
Major advantages include:
- Outstanding resistance to seawater corrosion
- Excellent resistance to chloride pitting and crevice corrosion
- Superior oxidation resistance up to approximately 980°C
- High tensile strength without heat treatment
- Excellent fatigue resistance
- Outstanding weldability
- Resistance to stress corrosion cracking
- Long service life in acidic environments
- Excellent cryogenic toughness
- Stable mechanical properties during thermal cycling
These characteristics make Inconel 625 one of the preferred materials for valves used in the world's harshest industrial services.
Product Features
Forged Body Construction

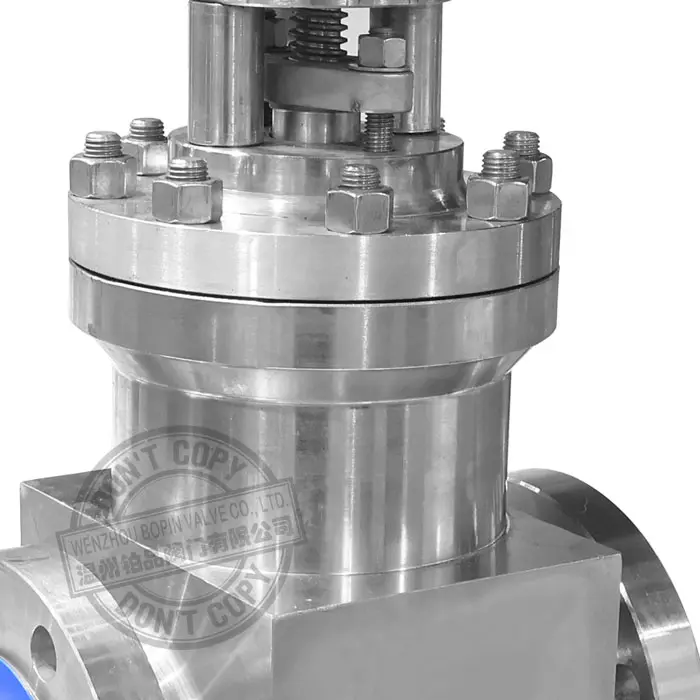

The valve body is manufactured from forged Inconel 625, producing a refined grain structure with superior mechanical strength compared with cast construction. Forging minimizes internal defects while improving impact resistance, pressure capability, and fatigue life.
Precision Wedged Gate
The flexible or solid wedge design provides positive sealing against both seats while automatically compensating for minor seat deformation caused by pressure or temperature fluctuations.
Rising Stem Design
The outside screw and yoke (OS&Y) configuration allows operators to visually identify valve position while keeping the stem threads isolated from the process media, reducing wear and corrosion.
Renewable Seat Rings
Precision-machined seating surfaces provide bubble-tight shut-off while allowing maintenance or replacement if necessary, extending the overall service life of the valve.
Blowout-Proof Stem
The stem is designed to prevent accidental blowout under system pressure, significantly improving operational safety.
Low Emission Packing
Graphite packing minimizes fugitive emissions while maintaining excellent sealing performance under elevated temperatures.
Flanged End Connection
ASME flanged ends simplify installation, maintenance, and replacement while providing secure leak-free pipeline connections.
Technical Specifications
| Item | Specification |
|---|---|
| Valve Type | Forged Wedged Gate Valve |
| Design Standard | API 602 |
| Pressure Rating | Class 150–2500 |
| Face to Face | ASME B16.10 |
| Flange Standard | ASME B16.5 / B16.47 |
| Pressure Testing | API 598 |
| Design Standard | ASME B16.34 |
| Body Material | ASTM B564 UNS N06625 |
| Trim Material | Inconel 625 |
| Seat | Metal Seated |
| Stem | Rising Stem |
| Bonnet | Bolted or Pressure Seal |
| Operation | Handwheel, Gear, Electric, Pneumatic |
| Size Range | 1/2"–24" |
| Temperature Range | -196°C to 980°C (application dependent) |
Performance Advantages
Excellent Corrosion Resistance
The alloy performs exceptionally well in:
- Chloride-rich seawater
- Sulfuric acid
- Phosphoric acid
- Organic acids
- Saltwater cooling systems
- Wet chlorine environments
- Offshore production systems
Unlike many stainless steels, Inconel 625 maintains excellent resistance to localized corrosion even after prolonged exposure.
Outstanding High Temperature Capability
The valve maintains strength and sealing integrity in elevated-temperature applications including:
- Steam generation
- Heat recovery systems
- Gas processing
- Furnace installations
- Petrochemical reactors
Its oxidation resistance and creep strength allow continuous service where conventional materials rapidly deteriorate.
Exceptional Mechanical Strength
Forged Inconel 625 offers:
- High yield strength
- Excellent tensile strength
- Superior fatigue resistance
- Excellent fracture toughness
- Long cyclic service life
These properties make the valve particularly suitable for high-pressure process systems.
Typical Applications
The API Forged Inconel 625 Gate Valve is widely used in:
Offshore Oil & Gas
- Seawater injection
- Produced water treatment
- Offshore platforms
- FPSO systems
- Subsea manifolds
Chemical Processing
- Acid production
- Chlorine plants
- Fertilizer production
- Chemical reactors
- Corrosive fluid handling
LNG Industry
- Cryogenic processing
- LNG storage
- LNG loading terminals
- Natural gas liquefaction
Power Generation
- Nuclear power plants
- Superheated steam systems
- Boiler feedwater
- Heat recovery units
Marine Industry
- Ballast systems
- Cooling water
- Fire protection
- Desalination plants
Mining
- Acid leaching
- Mineral processing
- Slurry systems
Quality Assurance
Each valve undergoes strict quality control throughout manufacturing.
Inspection procedures typically include:
- PMI (Positive Material Identification)
- Chemical composition verification
- Mechanical property testing
- Ultrasonic examination
- Radiographic testing when required
- Magnetic particle inspection where applicable
- Dimensional inspection
- Hydrostatic shell test
- Seat leakage test according to API 598
- Visual inspection
- Packing inspection
- Documentation review
Complete material traceability is maintained from raw material procurement through final shipment.
Optional Configurations
To meet specific operating requirements, optional features include:
- Pressure seal bonnet
- Extended bonnet
- Cryogenic design
- Locking device
- Chain wheel operation
- Bevel gear operator
- Electric actuator
- Pneumatic actuator
- Position indicator
- Fire-safe construction
- NACE MR0175 compliance
- Oxygen service cleaning
Benefits of Choosing API Forged Inconel 625 Gate Valves
Compared with standard stainless steel valves, forged Inconel 625 gate valves provide:
- Longer operational lifespan
- Lower maintenance costs
- Reduced downtime
- Excellent reliability
- Superior corrosion resistance
- Enhanced safety
- Better sealing performance
- Higher pressure capability
- Excellent resistance to aggressive chemicals
- Outstanding lifecycle value despite higher initial investment
These advantages make them the preferred solution for mission-critical applications where equipment failure is unacceptable.
