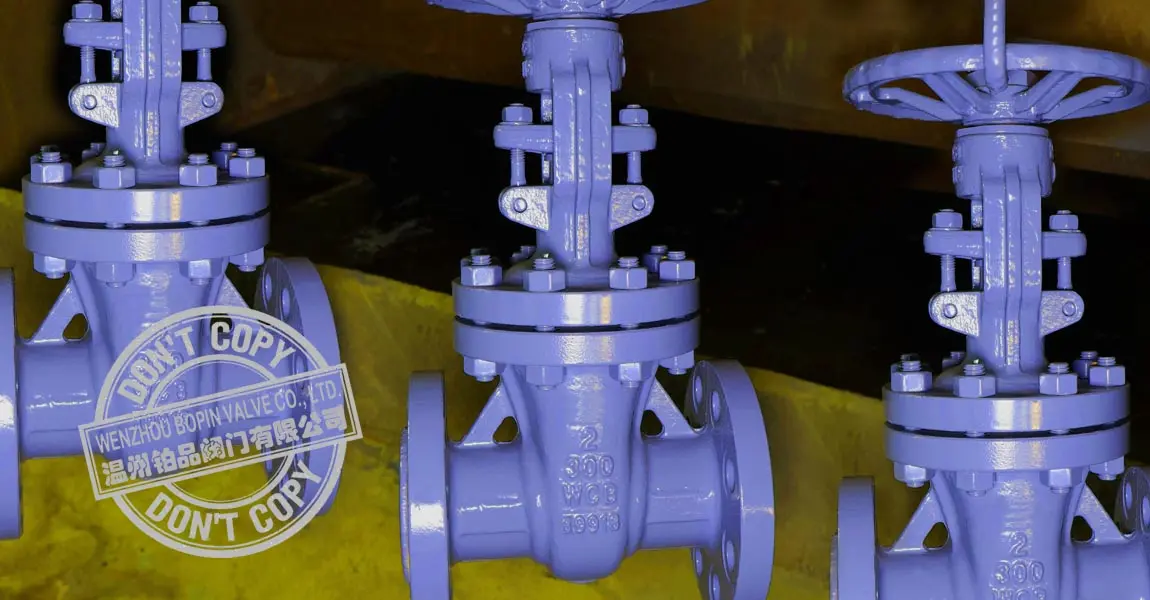

API 600 Wedged Gate Valve

BOPIN VALVE is a professional industrial valve manufacturer and supplier specializing in high-performance valves for oil & gas, petrochemical, power generation, marine, water treatment, and general industrial applications. Among its extensive product range, the API 600 Cast Steel Flange End Wedge Gate Valve is one of the most reliable and widely used isolation valves for high-pressure and high-temperature pipeline systems. Designed and manufactured in accordance with international standards, this gate valve delivers dependable shut-off performance, long service life, and excellent sealing capability in demanding operating environments.

Introduction of API 600 Wedge Gate Valve

The API 600 cast steel flange end wedge gate valve is a multi-turn linear motion valve mainly used for fully opening or fully closing the flow of fluids in pipelines. It is not recommended for throttling applications because partial opening may cause seat and wedge damage due to vibration and erosion.

This valve utilizes a wedge-shaped gate disc that moves vertically between two seat rings. When the handwheel or actuator rotates the stem, the wedge gate rises to allow flow or lowers to stop the medium completely. The wedge design ensures tight shut-off performance even under high pressure and temperature conditions.

BOPIN manufactures API 600 gate valves using advanced casting technology, CNC machining equipment, and strict quality control procedures to ensure every valve meets international performance and safety standards.

Design Standards and Specifications

BOPIN API 600 cast steel flange end wedge gate valves are manufactured according to globally recognized industrial standards, ensuring compatibility and reliability for international projects.

Main Standards

• Design Standard: API 600
• Face to Face: ASME B16.10
• Flange Dimension: ASME B16.5
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598
• Fire Safe Design: API 6FA (optional)
• NACE Compliance: MR0175 (optional)

Pressure Ratings

The valves are available in different pressure classes, including:

• Class 150
• Class 300
• Class 600
• Class 900
• Class 1500
• Class 2500

Size Range

• 2” to 48” (DN50 to DN1200)

Materials

BOPIN offers multiple material options for different working conditions:

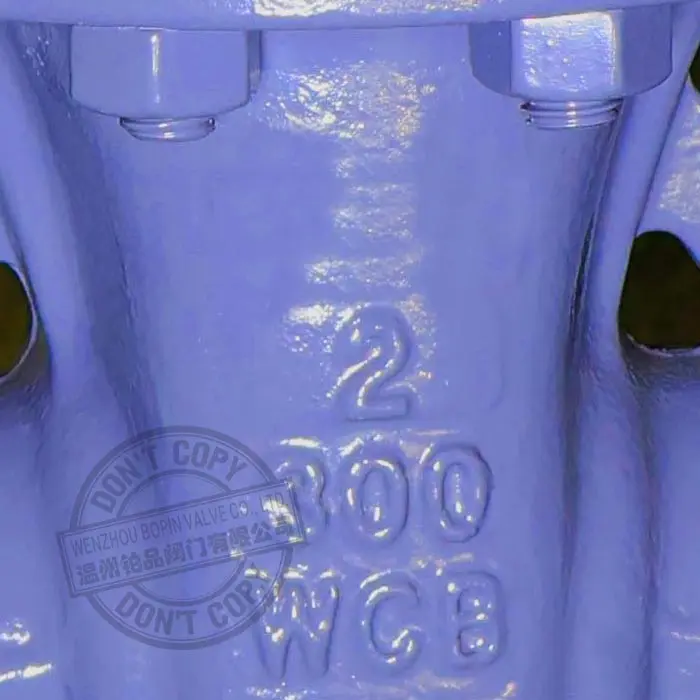

Body Materials

• ASTM A216 WCB
• ASTM A217 WC6
• ASTM A217 WC9
• ASTM A351 CF8
• ASTM A351 CF8M
• ASTM A352 LCB

Trim Materials

• 13Cr
• F6a
• SS304
• SS316
• STL hard facing

These material selections enable the valve to handle water, steam, oil, gas, corrosive chemicals, and high-temperature media effectively.

Structural Features

Solid Wedge Design

The solid wedge disc provides excellent sealing performance and structural strength. It is suitable for a wide range of temperatures and pressures, ensuring tight shut-off even in severe operating conditions.

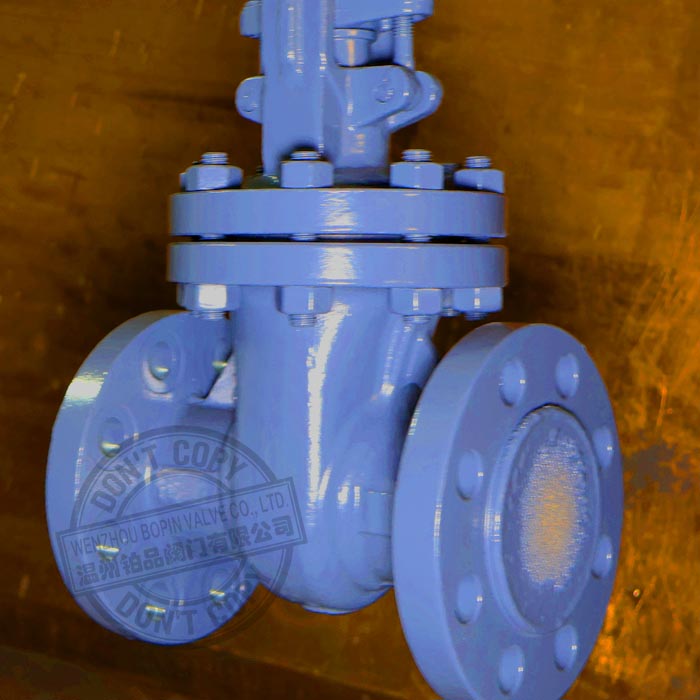

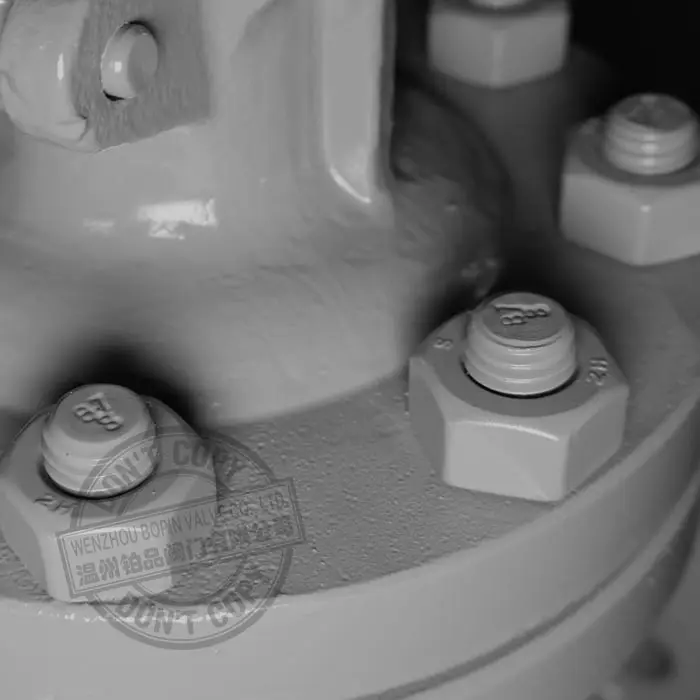

Bolted Bonnet Construction

The bolted bonnet design offers reliable sealing between the body and bonnet. A high-quality gasket is installed between the mating surfaces to prevent leakage during operation.

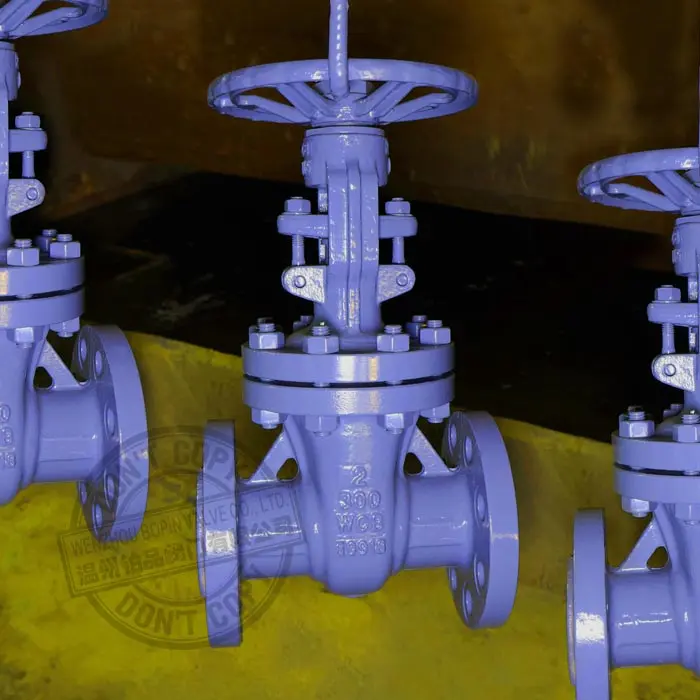

Rising Stem Design

Most API 600 gate valves manufactured by BOPIN use a rising stem structure. The stem moves upward when the valve opens, allowing operators to visually identify the valve position.

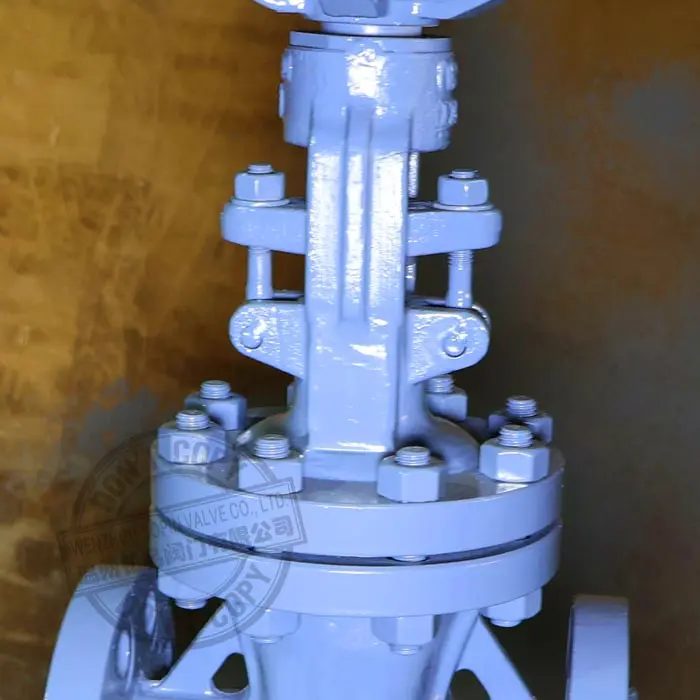

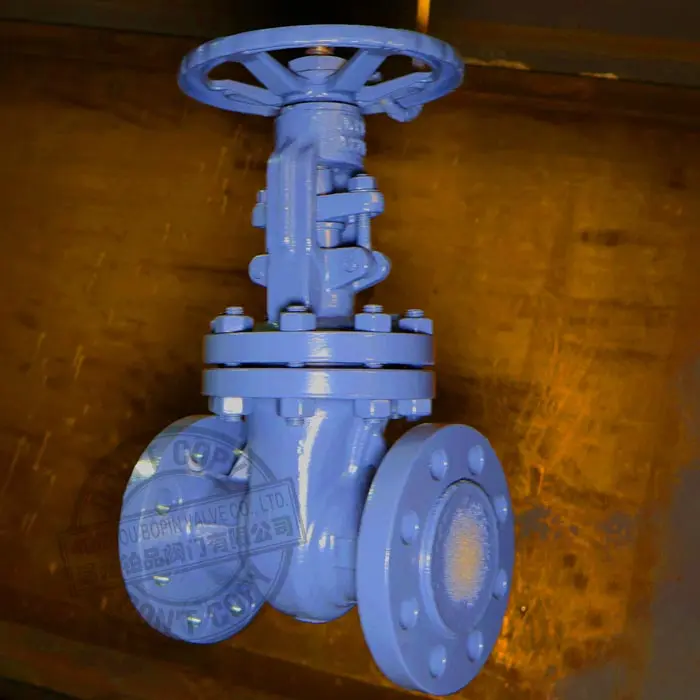

Outside Screw and Yoke (OS&Y)

The OS&Y structure isolates stem threads from the process medium, protecting them from corrosion and extending service life.

Renewable Seat Rings

The valve seat rings are threaded or welded into the body and can be replaced when worn, reducing maintenance costs and extending valve longevity.

Flexible Graphite Packing

High-quality graphite packing provides excellent sealing performance for the stem area, minimizing fugitive emissions and ensuring reliable operation under high temperatures.

Backseat Design

A built-in backseat enables online maintenance of stem packing when the valve is fully open, improving operational convenience.

Working Principle

The operation of the API 600 wedge gate valve is straightforward and efficient. Rotating the handwheel clockwise lowers the stem and wedge gate, pressing the wedge tightly against the seat rings to stop fluid flow completely. Rotating counterclockwise lifts the wedge, allowing unrestricted flow through the pipeline.

Because the valve provides a straight-through flow path with minimal turbulence and pressure drop, it is ideal for applications requiring full flow efficiency.

Advantages of BOPIN API 600 Gate Valve

Excellent Sealing Performance

The wedge gate design ensures tight shut-off and minimizes leakage, even in high-pressure systems.

Low Flow Resistance

When fully open, the gate is completely removed from the flow path, resulting in minimal pressure loss.

Long Service Life

Premium cast steel materials, precision machining, and hard-faced sealing surfaces improve wear resistance and durability.

Wide Application Range

The valve is suitable for steam, oil, gas, water, chemical fluids, and high-temperature services.

Easy Maintenance

Replaceable seat rings and bolted bonnet construction simplify maintenance and repair work.

Fire Safe Capability

Optional fire-safe construction enhances operational safety in hazardous environments.

Automation Compatibility

The valve can be equipped with electric, pneumatic, or gear actuators for automated control systems.

Applications

BOPIN API 600 cast steel flange end wedge gate valves are widely used across various industrial sectors:

Oil and Gas Industry

Used for crude oil transportation pipelines, refining systems, and offshore platforms.

Petrochemical Plants

Suitable for handling high-temperature and corrosive chemical media.

Power Stations

Applied in steam systems, boiler feedwater pipelines, and turbine auxiliary systems.

Water Treatment Systems

Used in municipal water supply and industrial water pipelines.

Marine Industry

Installed in shipbuilding and offshore engineering applications.

Mining and Heavy Industry

Provides reliable isolation in abrasive and demanding process systems.

Quality Control and Testing

BOPIN places great emphasis on product quality and reliability. Every API 600 gate valve undergoes strict inspection and testing before delivery.

Inspection Procedures

• Chemical composition analysis
• Mechanical property testing
• Dimensional inspection
• Non-destructive testing (NDT)
• Hydrostatic shell testing
• Seat leakage testing
• Operational testing

Advanced testing equipment ensures that all valves comply with API 598 requirements and customer specifications.

Packaging and Export Service

BOPIN provides professional export packaging to protect valves during international transportation. Wooden cases, anti-rust coating, and customized marking services are available according to customer requirements.

The company also supports OEM and ODM services, including customized logo casting, special painting colors, and unique packaging solutions for global distributors and project contractors.
