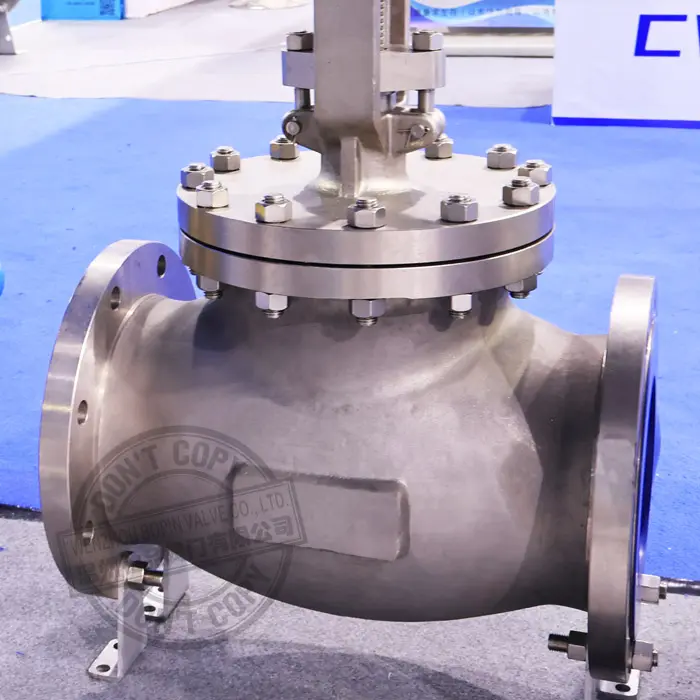

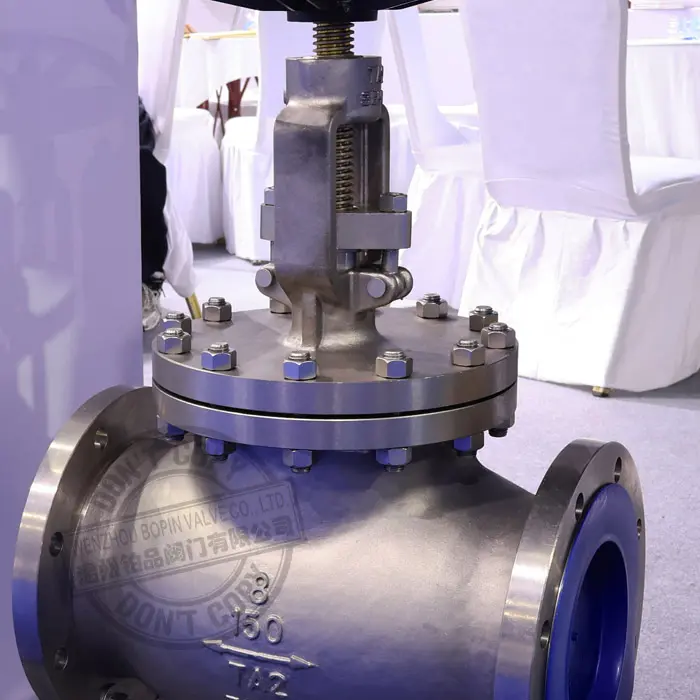

API Cast Titanium TA2 UNS R50400 Globe Valve

Introduction of API Cast Titanium TA2 Globe Valve

API Cast Titanium TA2 UNS R50400 Globe Valve is a high-performance industrial valve designed for applications requiring excellent corrosion resistance, lightweight construction, and reliable shut-off and throttling performance. Manufactured from commercially pure titanium Grade 2 material, this globe valve provides outstanding service capability in highly corrosive environments such as chemical processing, seawater systems, chlor-alkali plants, desalination facilities, and offshore industries.

Titanium Grade 2, corresponding to TA2 and UNS R50400, is one of the most widely used commercially pure titanium grades. It offers an excellent balance of corrosion resistance, mechanical strength, weldability, and fabrication performance. BOPIN applies advanced casting technology, precision machining, and strict quality control procedures to manufacture titanium globe valves that meet demanding industrial requirements.

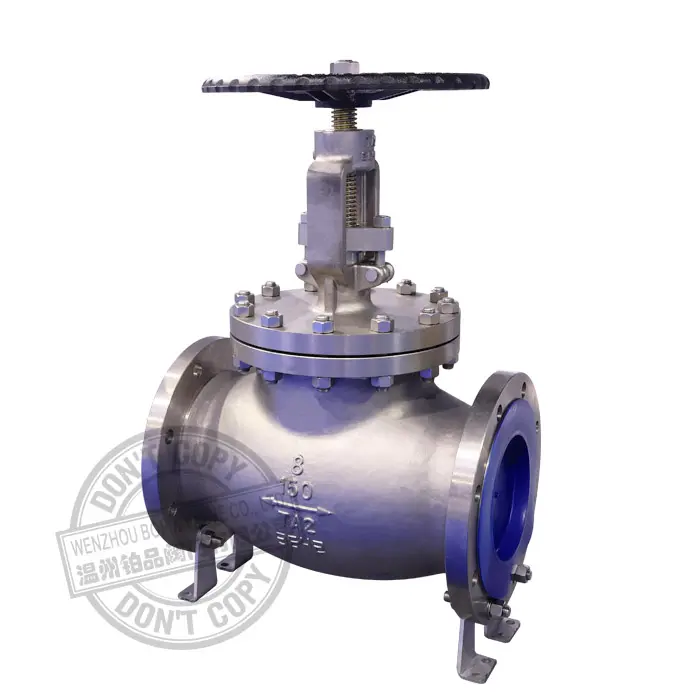

API Standard Titanium Globe Valve Design

The BOPIN API Cast Titanium TA2 Globe Valve is designed according to recognized API and ASME valve engineering principles. Globe valves are widely used for isolation and flow regulation because the disc movement provides accurate control of fluid passage. Compared with gate valves, globe valves offer better throttling capability and improved flow control performance.

The main design features include:

• Cast titanium valve body and bonnet
• Rising stem design
• Handwheel, gear, or actuator operation options
• Flanged end, butt weld end, or customized connection designs
• Replaceable seat design
• Precision machined sealing surfaces
• Anti-blowout stem structure
• Flexible graphite or customized sealing packing

The globe valve structure allows the disc to move vertically away from the seat, reducing seat damage during operation and providing dependable sealing performance.

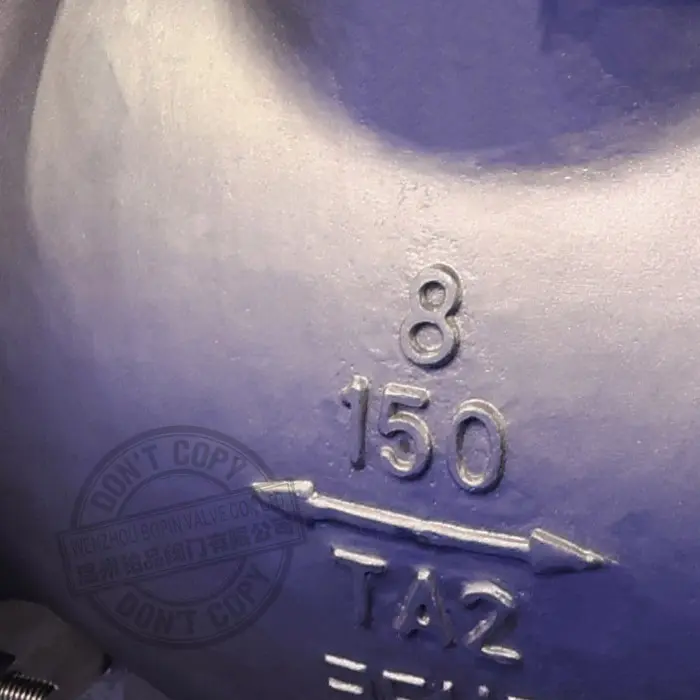

TA2 UNS R50400 Titanium Material Advantages

The most important feature of this valve is the use of Titanium Grade 2 (TA2 / UNS R50400). Titanium Grade 2 is commercially pure titanium with excellent corrosion resistance and moderate mechanical strength.

Compared with traditional stainless steel and alloy materials, titanium provides several advantages:

1. Outstanding Corrosion Resistance

Titanium naturally forms a stable and protective oxide film on its surface. This passive layer provides excellent resistance against seawater, chloride solutions, oxidizing acids, and many aggressive chemical media.

BOPIN titanium globe valves are especially suitable for:

• Seawater cooling systems
• Chemical processing equipment
• Marine applications
• Desalination plants
• Pharmaceutical industries
• Acid handling systems

The corrosion resistance of titanium significantly reduces maintenance requirements and extends valve service life.

2. High Strength-to-Weight Ratio

Titanium has a lower density compared with many traditional metals while maintaining good mechanical properties. This makes titanium valves lighter than equivalent nickel alloy or stainless steel valves, helping reduce pipeline loading and installation difficulty.

3. Excellent Resistance to Chloride Attack

Many industrial valve failures are caused by chloride-induced pitting and crevice corrosion. Titanium Grade 2 performs exceptionally well in chloride-containing environments, making it an ideal material for seawater and chemical applications.

4. Good Weldability and Fabrication Performance

TA2 titanium provides good ductility and weldability, allowing manufacturers to produce reliable cast and machined valve components.

Manufacturing Process of BOPIN Titanium Globe Valve

Producing titanium valves requires strict control because titanium reacts easily with oxygen, nitrogen, and other elements at elevated temperatures. BOPIN uses specialized manufacturing procedures to ensure valve reliability.

Titanium Casting

The valve body and bonnet are produced using high-quality titanium casting processes. Casting parameters are carefully controlled to achieve:

• Dense casting structure
• Reduced internal defects
• Accurate dimensions
• Improved mechanical performance

Precision Machining

After casting, CNC machining is applied to ensure:

• Accurate valve dimensions
• Smooth flow passage
• Proper seat alignment
• Reliable stem operation

Titanium machining requires specialized tools and techniques because of its unique physical characteristics.

Surface Treatment and Inspection

Each BOPIN titanium globe valve undergoes inspection procedures including:

• Chemical composition analysis
• Dimensional inspection
• Pressure testing
• Leakage testing
• Visual examination
• Non-destructive testing according to customer requirements

Main Components of Titanium Globe Valve

Titanium Valve Body

The body is manufactured from TA2 titanium casting, providing excellent corrosion resistance and structural strength. The streamlined internal design reduces pressure loss and improves flow efficiency.

Titanium Bonnet

The bonnet protects internal valve components and maintains pressure integrity. It is designed for easy maintenance and reliable sealing.

Disc

The disc controls fluid flow by moving against the seat. Depending on application requirements, the disc design can be customized for shut-off or regulating service.

Stem

The rising stem design provides clear indication of valve position. Stem materials and surface finishes are selected to achieve smooth operation and long service life.

Seat and Sealing System

The valve seat can be manufactured with titanium, titanium alloy, or other compatible materials according to service conditions. Soft sealing options are also available for applications requiring enhanced leakage performance.

Applications of BOPIN Titanium Globe Valve

Due to its excellent corrosion resistance, BOPIN API Cast Titanium TA2 Globe Valve is widely used in industries requiring advanced material performance.

Chemical Industry

Titanium globe valves are used in chemical plants handling corrosive liquids, acids, and salt solutions.

Typical applications include:

• Acid circulation systems
• Chemical reactors
• Process pipelines
• Chlorine-related systems

Marine and Offshore Industry

Titanium is highly resistant to seawater corrosion, making these valves suitable for:

• Offshore platforms
• Marine cooling systems
• Ship piping systems
• Seawater treatment equipment

Desalination Plants

Desalination equipment requires materials that can withstand continuous seawater exposure. Titanium valves provide reliable long-term performance in reverse osmosis and thermal desalination systems.

Power Generation

Titanium globe valves are applied in power plants for:

• Cooling water systems
• Condenser systems
• Auxiliary piping systems

Pharmaceutical and Food Processing

Where cleanliness and corrosion resistance are critical, titanium valves provide excellent service performance.

Advantages of Choosing BOPIN Titanium Globe Valve

Long Service Life

The excellent corrosion resistance of TA2 titanium reduces replacement frequency and lowers lifecycle costs.

Reliable Sealing Performance

Precision machining and strict testing ensure dependable shut-off performance.

Customized Manufacturing

BOPIN provides OEM manufacturing services including:

• Customized sizes
• Special pressure ratings
• Customer logos and markings
• Special end connections
• Actuated valve solutions

Quality Assurance

Every valve is inspected before shipment to ensure compliance with customer requirements and international standards.
