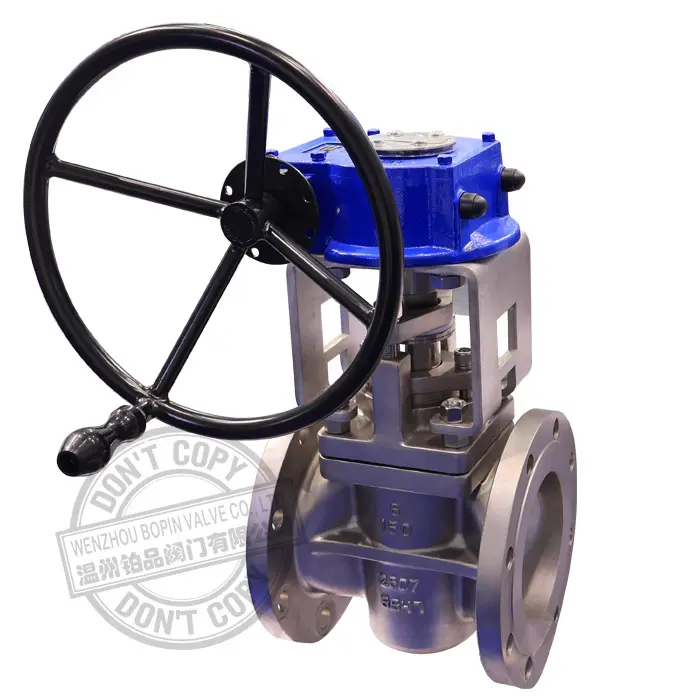

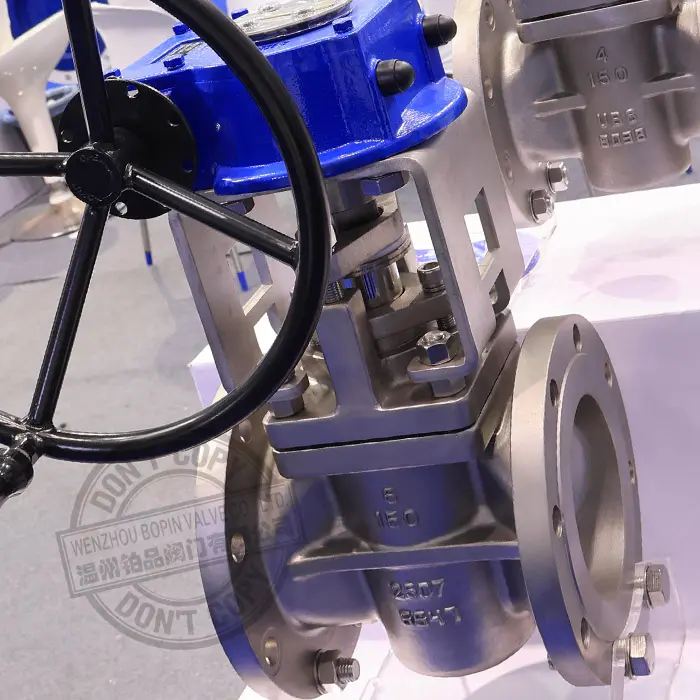

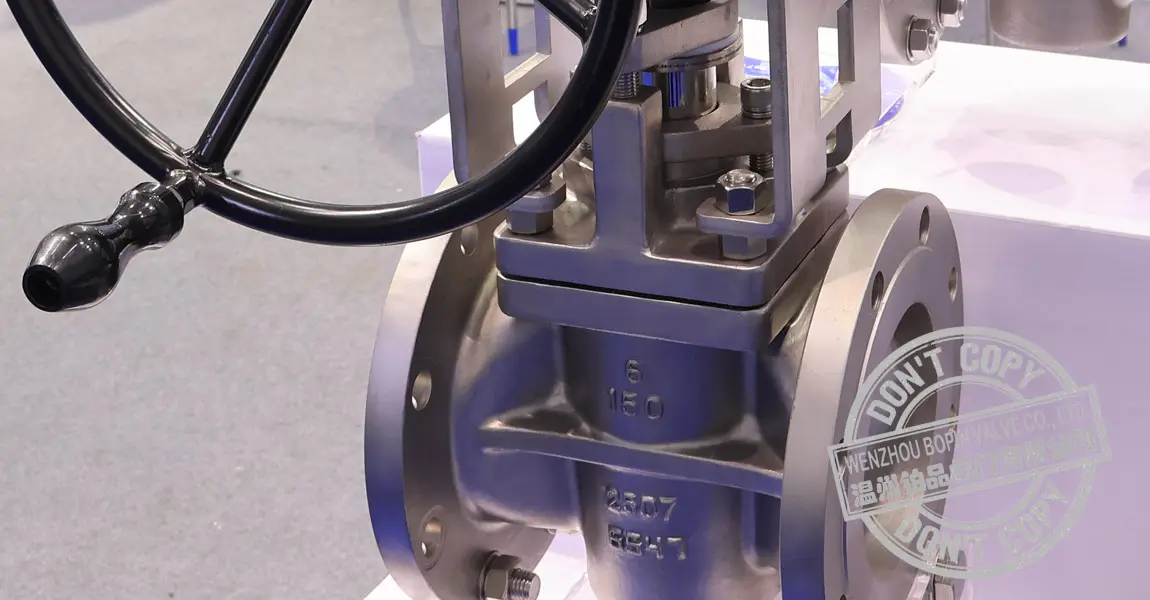

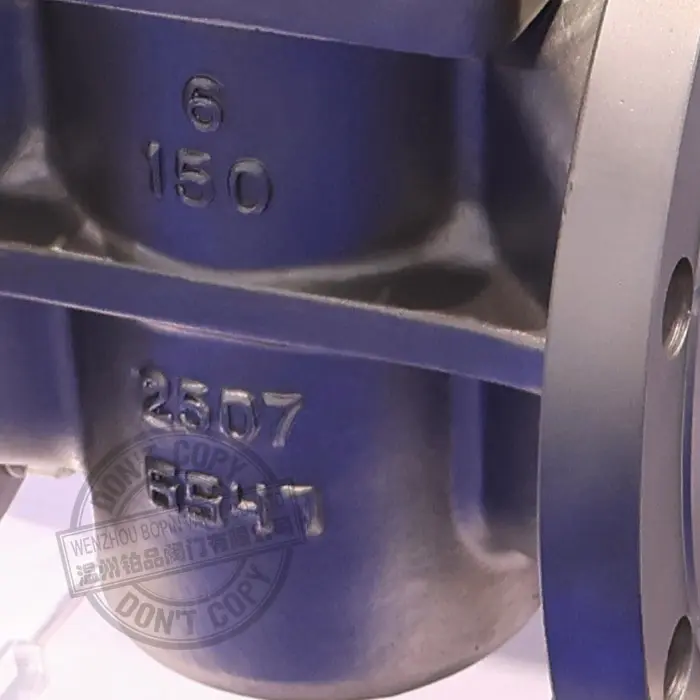

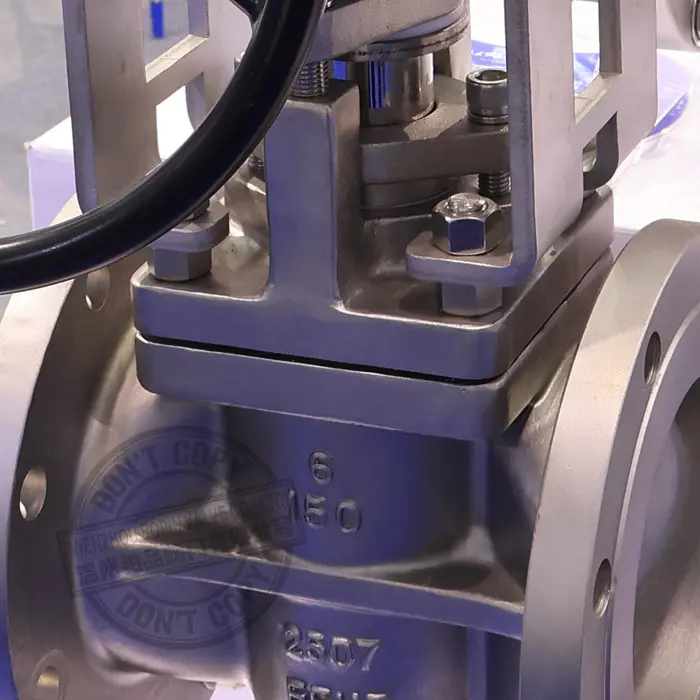

API 599 Flange End Worm Gear Operated Super Duplex Stainless Steel 2507 Sleeve Type Plug Valve
The Super Duplex Stainless Steel 2507 (UNS S32750 / ASTM A995 Grade 6A) API 599 Flange End Worm Gear Operated Sleeve Type Plug Valve is a high-performance quarter-turn valve designed for severe industrial applications involving corrosive fluids, high pressures, and demanding operating conditions. Combining the superior mechanical strength and corrosion resistance of Super Duplex Stainless Steel 2507 with the reliable sealing capability of a sleeve type plug valve, this valve provides excellent operational safety and long-term service life across various industries such as oil and gas, petrochemical processing, offshore platforms, marine engineering, desalination systems, and chemical plants.
This type of valve is manufactured in accordance with API 599 standards, ensuring compliance with internationally recognized requirements for design, materials, testing, and performance. The addition of worm gear operation improves handling efficiency, especially for larger valve sizes and high-torque applications.
Material Characteristics of Super Duplex Stainless Steel 2507
Super Duplex Stainless Steel 2507, designated as UNS S32750 and commonly supplied under ASTM A995 Grade 6A casting specifications, is an advanced stainless steel alloy featuring a balanced microstructure of approximately 50% ferrite and 50% austenite. This unique metallurgical structure delivers excellent mechanical properties and exceptional corrosion resistance.
The material composition generally includes:
- Chromium: 24–26%
- Nickel: 6–8%
- Molybdenum: 3–5%
- Nitrogen: 0.24–0.32%
- Carbon: ≤0.03%
The key advantages of Super Duplex Stainless Steel 2507 include:
Superior Corrosion Resistance
The high chromium and molybdenum content provide outstanding resistance to:
- Pitting corrosion
- Crevice corrosion
- Chloride stress corrosion cracking
- General corrosion
- Sulfide stress cracking
This makes the material highly suitable for seawater environments and aggressive chemical media.
High Mechanical Strength
Super Duplex 2507 offers nearly double the yield strength of conventional austenitic stainless steels such as 316 stainless steel. This allows designers to reduce wall thickness while maintaining structural integrity.
Excellent Impact Strength
The material maintains favorable toughness and impact resistance over a wide temperature range.
Long Service Life
Enhanced wear resistance and anti-corrosion characteristics significantly reduce maintenance costs and downtime.
API 599 Sleeve Type Plug Valve Design
API 599 specifies the requirements for metal plug valves used in pipeline and process applications. A sleeve type plug valve employs a cylindrical or tapered plug enclosed within a non-metallic sleeve.
The sleeve serves multiple functions:
- Provides bubble-tight shutoff
- Minimizes operating torque
- Reduces friction between plug and body
- Eliminates direct metal-to-metal contact
- Enhances sealing performance
During operation, the plug rotates 90 degrees:
Open Position
The flow port in the plug aligns with the pipeline, allowing unrestricted fluid flow.
Closed Position
The solid portion of the plug blocks the passage, creating complete shutoff.
The sleeve material is often selected according to process conditions and may include:
- PTFE
- Reinforced PTFE
- PFA
- Other specialized fluoropolymer materials
These materials provide excellent chemical compatibility and low friction characteristics.
Flange End Design
The flange end connection provides secure installation and compatibility with standard pipeline systems.
Common flange standards include:
- ASME B16.5
- ASME B16.47
- DIN standards
- EN standards
Advantages of flange end construction include:
Easy Installation
Bolted flange connections simplify field installation and replacement.
Reliable Sealing
Gaskets and precision-machined flange surfaces ensure leak-tight performance.
Strong Mechanical Connection
Flanges withstand high pressures and pipeline stress loads.
Suitable for Large Diameter Systems
Flanged designs are preferred in medium and large-size process pipelines.
Pressure ratings commonly include:
- Class 150
- Class 300
- Class 600
- Class 900
- Class 1500
- Class 2500
Worm Gear Operation
For larger valve sizes and higher pressure classes, manual operation can require substantial torque. A worm gear actuator reduces operating effort by converting input force into controlled rotational movement.
Major advantages include:
Reduced Operating Force
The gear mechanism significantly lowers the force required from operators.
Accurate Positioning
The gear arrangement permits controlled and precise opening or closing actions.
Self-Locking Function
Most worm gear systems include self-locking characteristics that prevent accidental movement caused by vibration or process forces.
Enhanced Safety
Slow and controlled operation reduces the risk of water hammer and sudden pressure surges.
Suitability for Automation
Worm gear systems can be integrated with:
- Electric actuators
- Pneumatic actuators
- Hydraulic actuators
- Intelligent control systems
Structural Features of Sleeve Type Plug Valves
Full Port Flow Design
Many sleeve type plug valves are designed with a full bore passage, minimizing pressure drop and allowing unrestricted media flow.
Low Operating Torque
The non-metallic sleeve substantially reduces friction during plug rotation.
Bubble-Tight Shutoff
Elastic sleeve deformation provides reliable sealing performance and minimizes leakage.
Maintenance-Friendly Design
Simple construction allows easier maintenance compared with some other valve designs.
Fire Safe Design
Optional fire-safe construction can comply with API 607 requirements.
Anti-Static Device
Special grounding arrangements prevent electrostatic charge accumulation.
Blowout-Proof Stem
A secure stem design improves safety under high-pressure service conditions.
Typical Technical Specifications
Typical specifications for Super Duplex 2507 API 599 Sleeve Type Plug Valves may include:
Valve Type:
Flange End Worm Gear Operated Sleeve Type Plug Valve
Design Standard:
API 599
Face-to-Face Standard:
ASME B16.10
Flange Standard:
ASME B16.5
Inspection and Testing:
API 598
Body Material:
ASTM A995 Grade 6A
Plug Material:
Super Duplex Stainless Steel 2507
Stem Material:
Super Duplex Stainless Steel
Sleeve Material:
PTFE or reinforced PTFE
Pressure Rating:
Class 150–Class 2500
Size Range:
DN15–DN600 (1/2"–24")
Temperature Range:
-29°C to +200°C depending on sleeve material
Operation:
Worm Gear Operated
Applications
Due to its outstanding corrosion resistance and high strength, Super Duplex Stainless Steel sleeve type plug valves are widely used in harsh industrial environments.
Oil and Gas Industry
The valve handles:
- Sour gas
- Crude oil
- Produced water
- Offshore production fluids
Offshore Platforms
Marine environments contain high chloride concentrations that require superior corrosion-resistant materials.
Seawater Systems
Applications include:
- Cooling water systems
- Firefighting systems
- Seawater injection systems
Chemical Processing Plants
The valve can handle aggressive chemicals and corrosive media safely.
Desalination Plants
Super Duplex materials are commonly selected for:
- Reverse osmosis systems
- Brine handling pipelines
- High salinity water systems
Marine Industry
Shipbuilding and marine process systems frequently use Super Duplex valves because of excellent seawater resistance.
Power Generation
Power plants utilize these valves in steam, cooling water, and chemical treatment systems.
Advantages of Super Duplex 2507 Sleeve Type Plug Valve
Compared with conventional carbon steel or standard stainless steel valves, this design provides several important benefits:
- Outstanding resistance to chloride corrosion
- High strength-to-weight ratio
- Longer service life
- Lower maintenance requirements
- Excellent sealing performance
- Reduced operating torque
- Reliable shutoff capability
- Suitable for severe operating conditions
- High pressure and temperature capability
- Improved process safety
