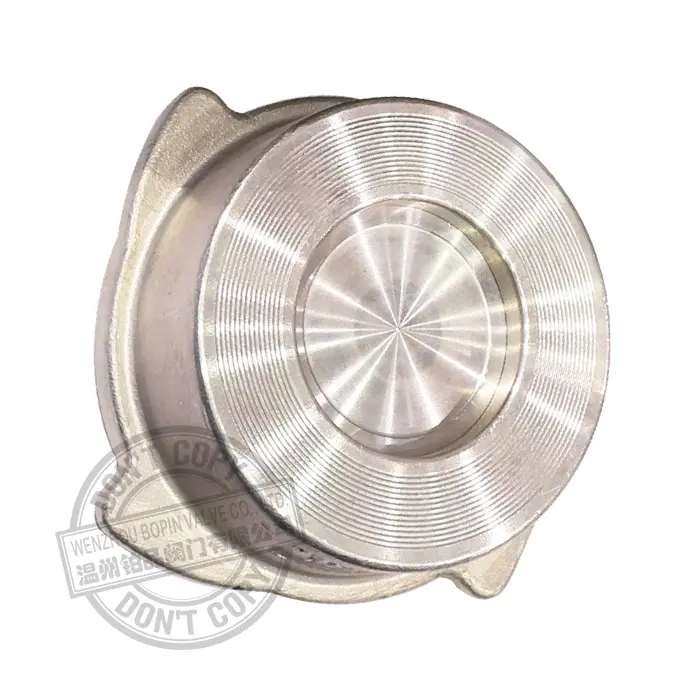

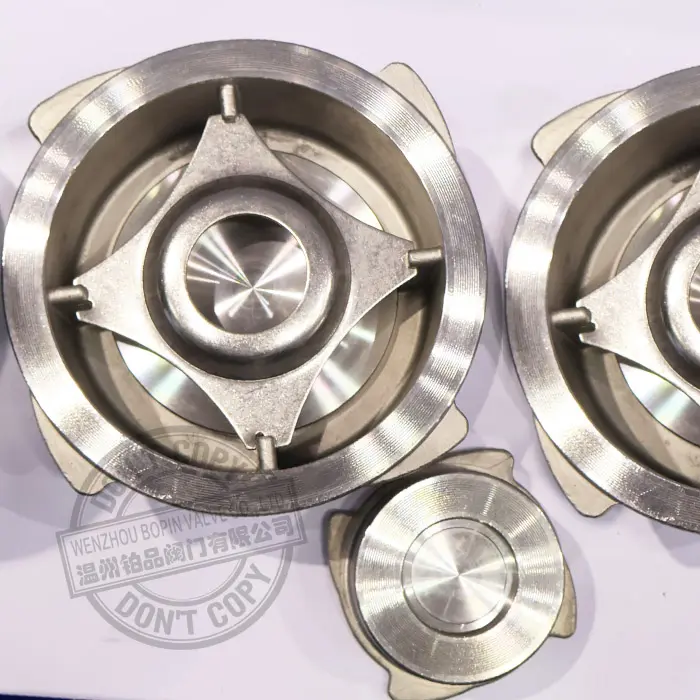

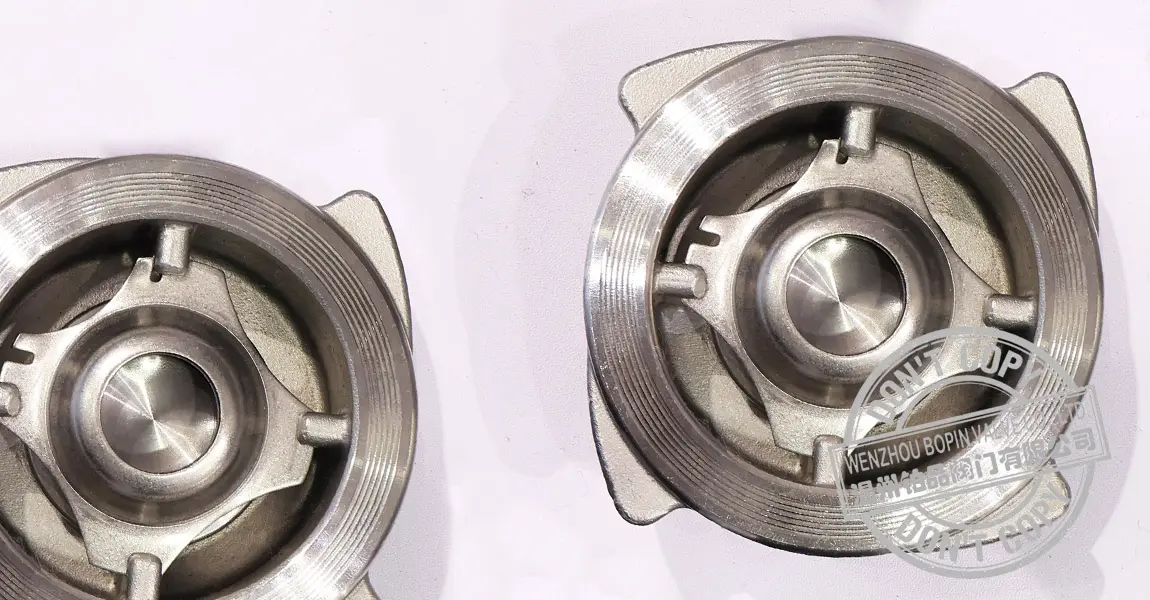

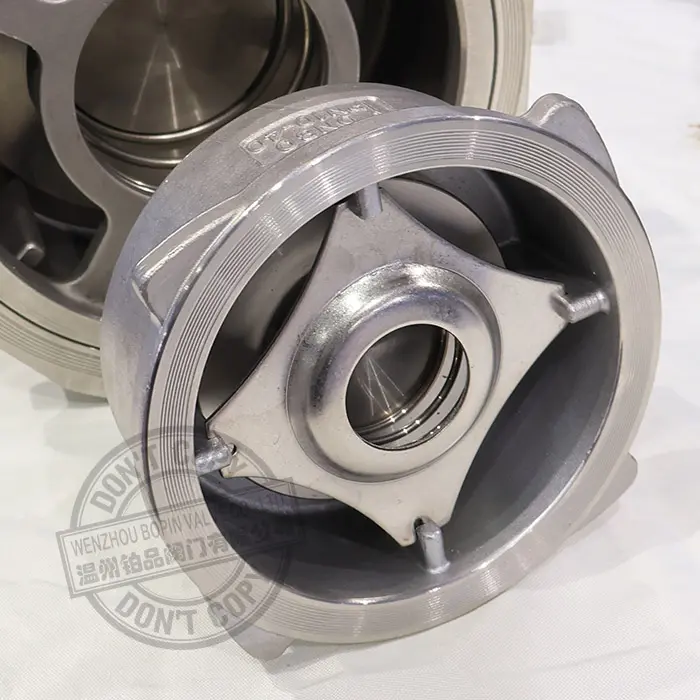

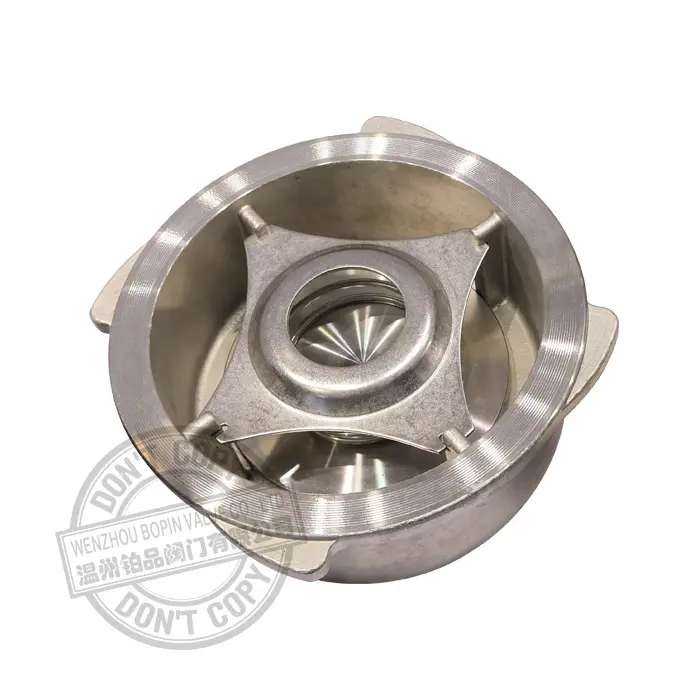

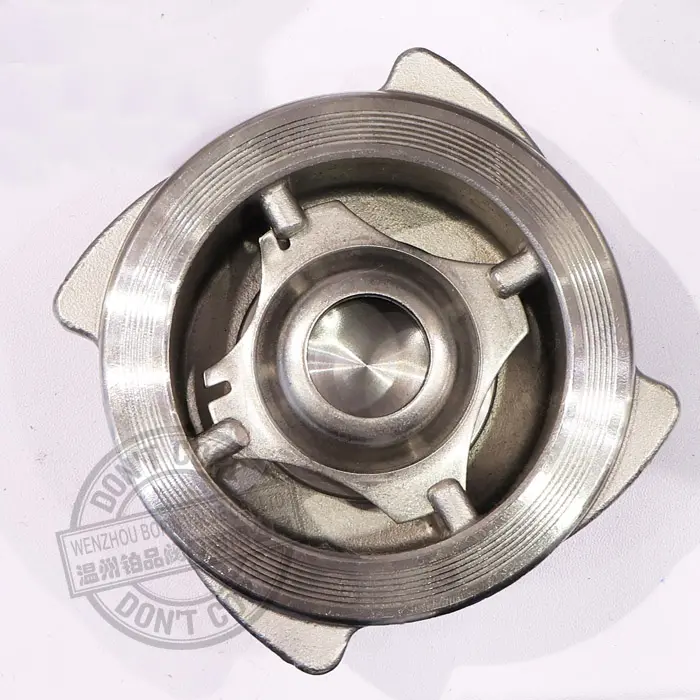

DIN 1092 Stainless Steel Disco Design Wafer Check Valve
A wafer check valve is an automatic valve that allows fluid to flow in one direction while preventing backflow. Unlike manually operated valves, check valves function without external actuation. The movement of the disc is controlled by the pressure and flow of the fluid itself.
The DIN 1092 Stainless Steel Disco Design Wafer Check Valve features a streamlined body that fits between DIN flange connections. Its lightweight and compact design make installation easier while reducing overall piping system weight and cost.
Constructed from high-quality stainless steel materials such as CF8, CF8M, SS304, or SS316, the valve offers excellent corrosion resistance and durability, making it suitable for both clean and aggressive media.
Design Features
1. Compact Wafer Construction
The wafer design minimizes face-to-face dimensions, allowing the valve to be installed between standard DIN flanges without requiring additional supports. This compact structure reduces installation space and lowers transportation costs.
2. Stainless Steel Body and Disc
The valve body and disc are manufactured from corrosion-resistant stainless steel, ensuring excellent performance in environments exposed to moisture, chemicals, seawater, and corrosive fluids.
Benefits include:
- Excellent corrosion resistance
- High mechanical strength
- Long service life
- Reduced maintenance requirements
- Suitable for hygienic applications

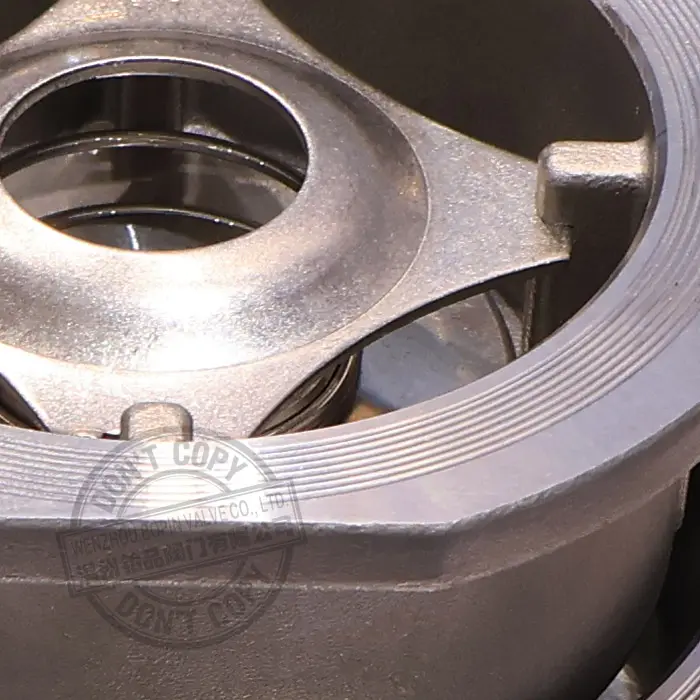

3. Spring-Assisted Disc
Most disc design wafer check valves incorporate a spring-loaded mechanism that enables rapid closing action. The spring assists the disc in returning to the closed position immediately when flow decreases.
Advantages include:
- Reduced water hammer effect
- Faster valve response
- Improved sealing performance
- Enhanced system protection
4. Low Pressure Drop
The streamlined disc profile allows fluid to pass through with minimal resistance, reducing energy consumption and improving overall system efficiency.
5. Leak-Tight Sealing
Precision-machined seating surfaces provide reliable shut-off performance. Depending on application requirements, metal-to-metal or soft-seated designs can be selected.
Working Principle
The operation of the DIN 1092 Stainless Steel Disc Design Wafer Check Valve is simple and automatic.
When fluid flows in the desired direction, pressure generated by the flow pushes the disc away from the seat. This creates an open passage that allows fluid to move through the valve with minimal restriction.
When the flow stops or reverses, the spring force and reverse pressure immediately push the disc back onto the seat. The valve closes automatically, preventing reverse flow and protecting pumps, compressors, and other equipment from potential damage.
This automatic operation eliminates the need for manual intervention and enhances overall system reliability.
Materials of Construction
Typical material options include:
| Component | Material |
|---|---|
| Body | ASTM A351 CF8, CF8M, SS304, SS316 |
| Disc | Stainless Steel 304, 316 |
| Spring | SS304, SS316 |
| Seat | Metal Seat, PTFE, EPDM, NBR |
| Retainer | Stainless Steel |
Material selection depends on fluid characteristics, temperature, pressure, and corrosion requirements.
Technical Specifications
Typical specifications include:
- Design Standard: DIN Standards
- Flange Standard: DIN 1092
- Pressure Rating: PN10, PN16, PN25, PN40
- Size Range: DN15 to DN600
- Body Material: Stainless Steel
- Connection Type: Wafer
- Operating Temperature: -20°C to 250°C (depending on seat material)
- Testing Standard: EN 12266-1
- Flow Direction: One-way flow
Manufacturers may provide customized specifications for special applications.
Advantages of Stainless Steel Disc Design Wafer Check Valves
Excellent Corrosion Resistance
Stainless steel construction provides superior protection against corrosion, oxidation, and chemical attack. This makes the valve suitable for aggressive media and harsh environments.
Lightweight Design
Compared with conventional swing check valves, wafer check valves are significantly lighter, reducing installation effort and support requirements.
Space Saving
The compact wafer body requires minimal installation space, making it ideal for crowded piping systems.
Reduced Water Hammer
Spring-assisted closing significantly reduces the risk of water hammer, which can damage pipelines and equipment.
Low Maintenance
The simple internal structure minimizes wear and reduces maintenance frequency.
Cost Efficiency
Lower material usage, reduced installation costs, and long service life contribute to excellent overall economic value.
Industrial Applications
Water Treatment Plants
The valve prevents backflow in pumping systems, filtration equipment, and distribution pipelines. Stainless steel construction ensures durability in treated and untreated water services.
Chemical Processing
Chemical plants require corrosion-resistant valves capable of handling aggressive fluids. Stainless steel wafer check valves provide reliable protection against reverse flow.
Oil and Gas Industry
The valves are commonly installed in process lines, utility systems, and pumping stations to protect critical equipment.
Food and Beverage Industry
Stainless steel materials meet hygiene requirements and help maintain product purity during processing operations.
Pharmaceutical Industry
The smooth internal surfaces and corrosion-resistant materials make these valves suitable for high-purity fluid systems.
Marine Applications
The excellent seawater resistance of stainless steel makes the valve ideal for shipbuilding and offshore installations.
Installation Guidelines
To achieve optimal performance, the following installation practices should be followed:

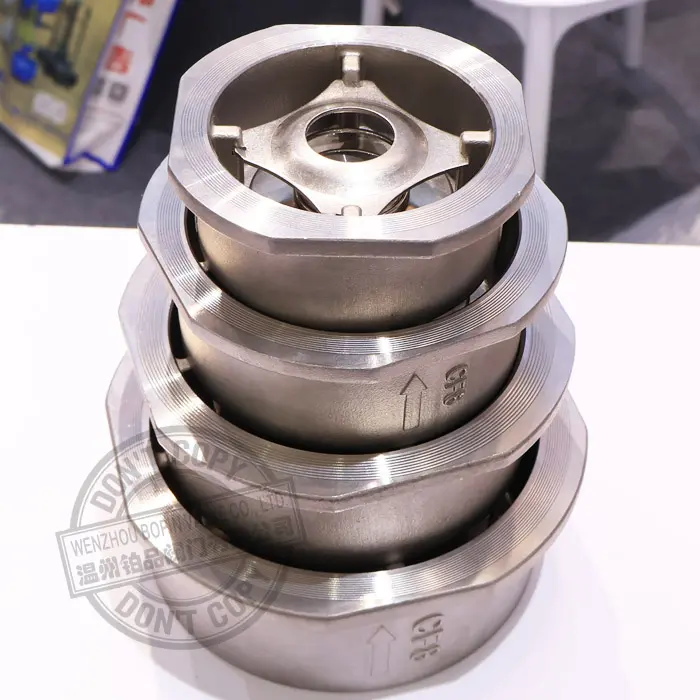

- Verify flow direction indicated by the arrow on the valve body.
- Ensure flange faces are clean and aligned.
- Install the valve between matching DIN flanges.
- Use appropriate gaskets according to system requirements.
- Tighten flange bolts evenly to prevent distortion.
- Confirm adequate clearance for disc movement.
- Conduct pressure testing after installation.
Proper installation helps maximize valve life and ensure reliable operation.
Maintenance Recommendations
Although wafer check valves require minimal maintenance, regular inspections can improve reliability.
Recommended procedures include:
- Periodic visual inspection
- Checking for leakage
- Monitoring pressure drop
- Inspecting spring condition
- Cleaning internal components when necessary
- Replacing worn sealing elements
Preventive maintenance minimizes unexpected downtime and extends service life.
Why Choose BOPIN Stainless Steel Wafer Check Valves
BOPIN Valve supplies high-quality DIN 1092 Stainless Steel Disc Design Wafer Check Valves designed to meet international industrial requirements. With advanced manufacturing technology, strict quality control procedures, and extensive export experience, BOPIN delivers reliable valve solutions for customers worldwide.
Key advantages include:
- Premium stainless steel materials
- Precision machining and assembly
- Strict pressure and leakage testing
- Competitive pricing
- Fast delivery schedules
- Customization options available
- Professional technical support
