API 609 ASTM A351 CF8M Stainless Steel Worm Gear Operated Lug Type Triple Offset Butterfly Valve

The API 609 ASTM A351 CF8M Stainless Steel Worm Gear Operated Lug Type Triple Offset Butterfly Valve is a high-performance industrial valve designed for demanding applications requiring reliable shutoff, excellent sealing performance, and long service life. Combining advanced triple offset technology with corrosion-resistant CF8M stainless steel construction, this valve is widely used in oil and gas, petrochemical, chemical processing, power generation, marine, and industrial utility systems.

Unlike conventional concentric or double-offset butterfly valves, the triple offset butterfly valve provides true zero-leakage performance and minimizes seat wear during operation. Its worm gear operator ensures smooth and precise valve control, making it suitable for medium and large-sized pipelines where manual operation would otherwise be difficult.

Design Standard and Construction

This valve is manufactured according to API 609 standards, ensuring compliance with internationally recognized requirements for butterfly valve design, testing, and performance. The body material ASTM A351 CF8M is equivalent to cast stainless steel 316, offering superior corrosion resistance in aggressive environments.

Main Specifications

• Design Standard: API 609
• Face-to-Face Dimension: ASME B16.10
• Flange Standard: ASME B16.5 / ASME B16.47
• Inspection and Testing: API 598
• Body Material: ASTM A351 CF8M
• Disc Material: Stainless Steel
• Stem Material: Stainless Steel
• Seat Type: Metal Seated
• Connection Type: Lug Type
• Operation: Worm Gear
• Pressure Rating: Class 150, 300, 600
• Size Range: DN50 to DN1200 (2" to 48")
• Temperature Range: -196°C to +650°C (depending on seat material)

Understanding Triple Offset Technology

The key feature of this butterfly valve is its triple offset design.

First Offset

The shaft is positioned behind the seat centerline, allowing the disc to rotate away from the seat immediately during opening.

Second Offset

The shaft is offset from the pipeline centerline, creating a cam-like motion that reduces friction between the disc and seat.

Third Offset

The sealing surface is designed with a conical geometry, ensuring that the disc and seat engage only at the final stage of closing. This eliminates rubbing and significantly extends seat life.

The result is a valve capable of providing bubble-tight shutoff with minimal wear even under frequent operation.

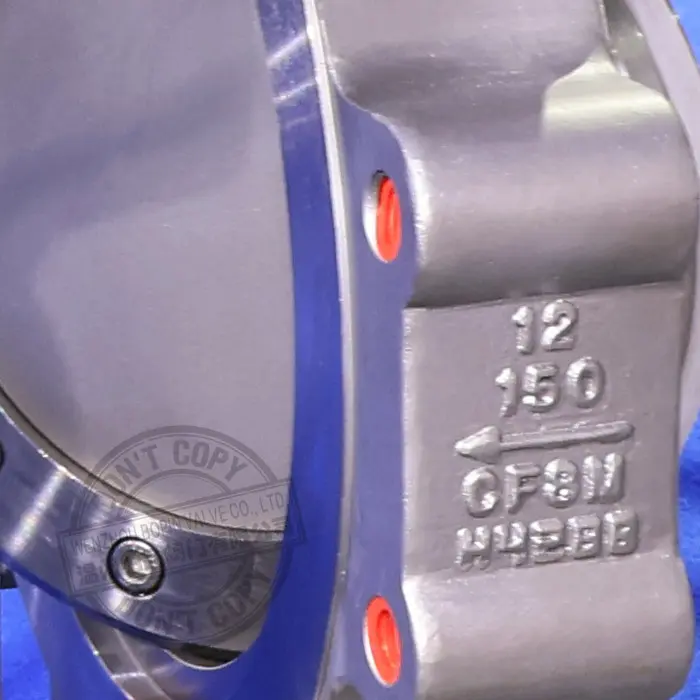

Advantages of ASTM A351 CF8M Material

ASTM A351 CF8M stainless steel is one of the most commonly specified materials for severe industrial services due to its excellent corrosion resistance and mechanical properties.

Corrosion Resistance

CF8M contains molybdenum, which enhances resistance to:

• Chloride corrosion
• Pitting corrosion
• Crevice corrosion
• Chemical attack
• Seawater environments

High Strength

The material maintains excellent structural integrity under both high pressure and elevated temperature conditions.

Long Service Life

The corrosion-resistant properties reduce maintenance requirements and increase operational reliability, especially in harsh process environments.

Hygienic Properties

CF8M stainless steel is suitable for industries where cleanliness is important, including food processing, pharmaceutical production, and water treatment.

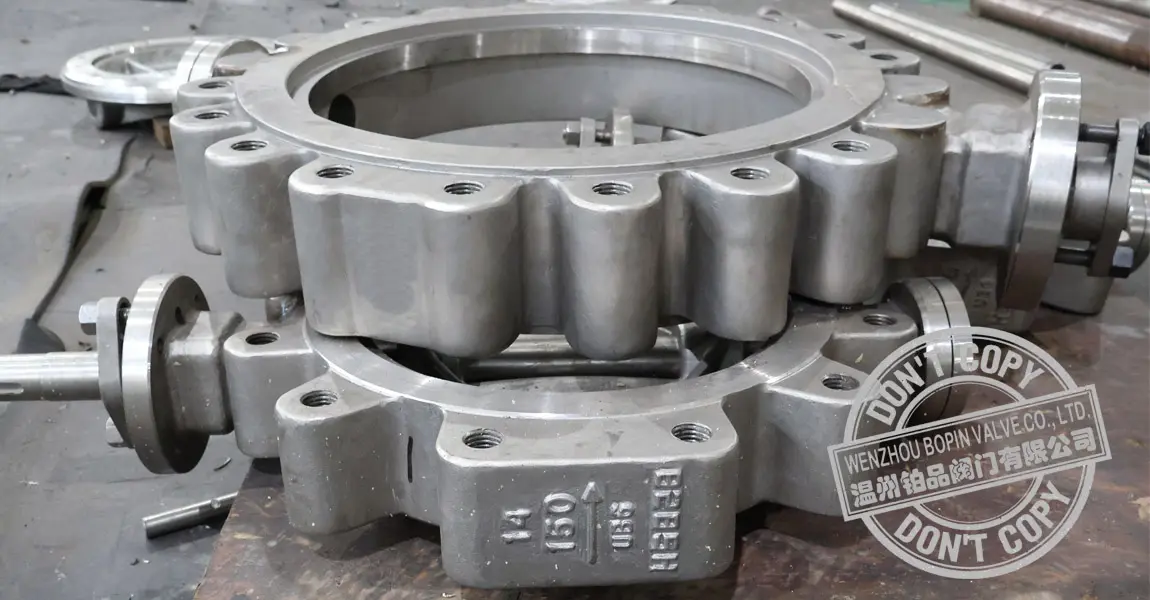

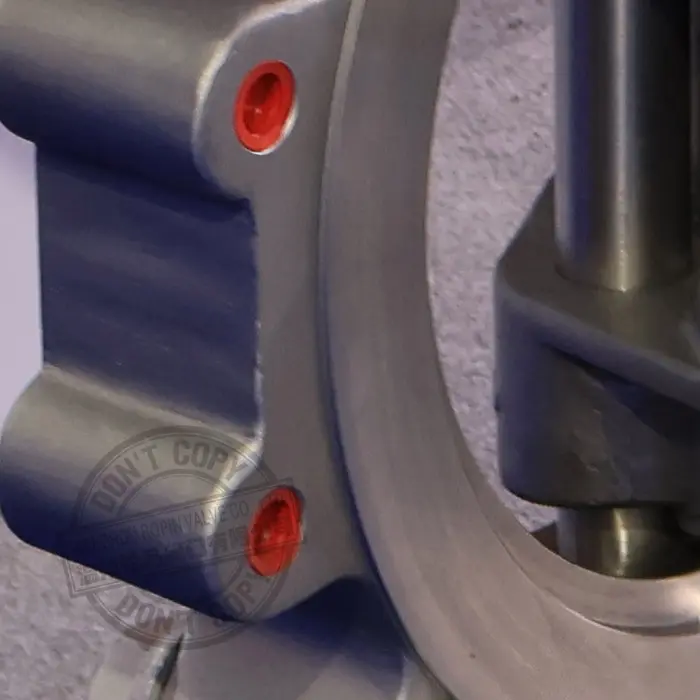

Lug Type Connection Design

The lug type body configuration allows the valve to be installed between two flanges using individual bolting for each flange connection.

Benefits of Lug Type Construction

Easy Pipeline Maintenance

One side of the pipeline can be disconnected without disturbing the opposite side.

Enhanced Installation Flexibility

Suitable for dead-end service within specified pressure ratings.

Improved Stability

Independent bolting provides secure mounting and reliable sealing performance.

Simplified System Modifications

The valve can be removed or replaced more conveniently compared with wafer-style designs.

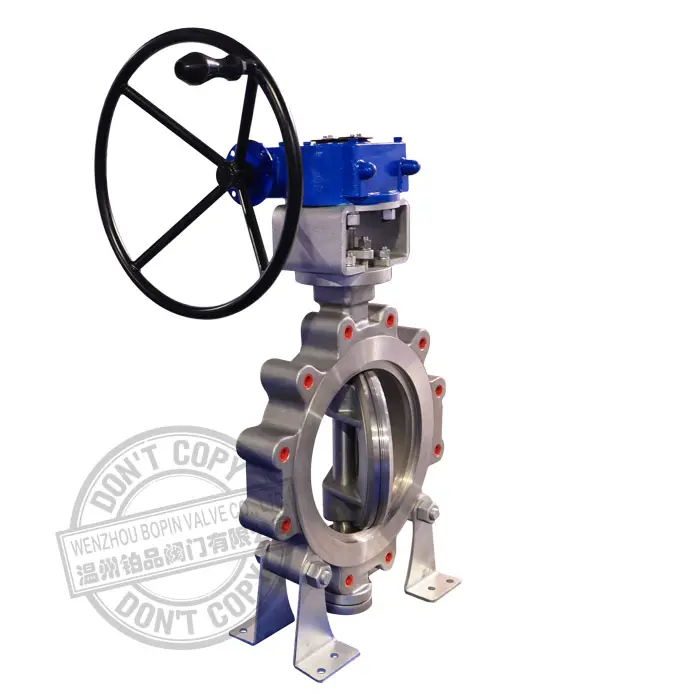

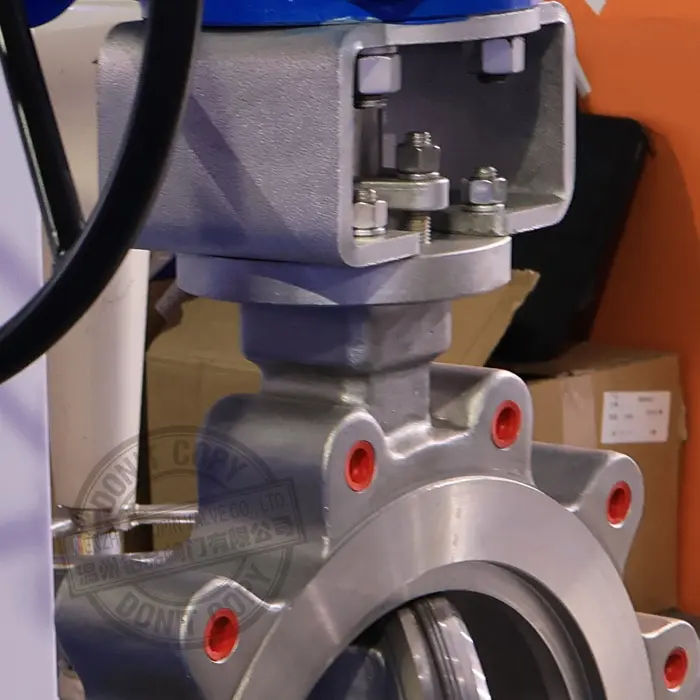

Worm Gear Operation

For larger valve sizes and higher pressure applications, worm gear operation offers substantial advantages over lever-operated valves.

Smooth Operation

The gear reduction mechanism minimizes the effort required to open and close the valve.

Accurate Positioning

Operators can precisely control valve opening angles for throttling applications.

Self-Locking Function

The worm gear mechanism maintains valve position and prevents unintended movement caused by pipeline vibration or flow forces.

Improved Safety

Controlled operation reduces the risk of sudden valve movement, protecting both personnel and equipment.

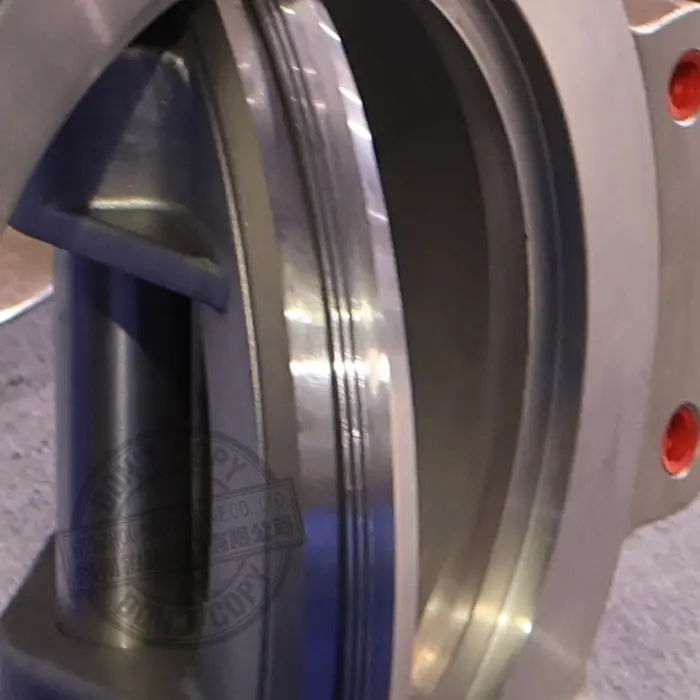

Metal-to-Metal Sealing System

One of the most significant advantages of triple offset butterfly valves is their metal-seated sealing design.

Zero Leakage Performance

The precision-machined sealing surfaces provide bidirectional tight shutoff.

Fire-Safe Capability

Metal seats continue functioning under extreme temperatures where soft-seated valves may fail.

Resistance to Wear

The non-rubbing design minimizes seat damage during operation.

High Temperature Suitability

Ideal for steam systems, thermal oil services, and high-temperature gas applications.

Applications

Oil and Gas Industry

Triple offset butterfly valves are extensively used in:

• Refinery processing units
• Offshore platforms
• Pipeline transmission systems
• Storage terminals
• Gas processing facilities

Their reliable shutoff performance helps ensure operational safety and environmental compliance.

Petrochemical Plants

Chemical processing operations often involve aggressive fluids and high temperatures. CF8M stainless steel provides the corrosion resistance required for long-term service.

Power Generation

The valve performs exceptionally well in:

• Steam systems
• Condensate systems
• Boiler feedwater lines
• Cooling water circuits

The metal-seated design withstands the high temperatures encountered in power plants.

Marine and Offshore Applications

The corrosion-resistant CF8M body is highly suitable for:

• Seawater systems
• Ballast water systems
• Offshore production facilities
• Shipboard piping networks

Water and Wastewater Treatment

The valve offers dependable performance in:

• Pump stations
• Treatment plants
• Distribution networks
• Industrial water systems

Chemical Processing

The valve handles a wide variety of corrosive chemicals while maintaining excellent sealing integrity and operational reliability.

Performance Features

Bubble-Tight Shutoff

The triple offset geometry achieves exceptional sealing performance with virtually zero leakage.

Low Torque Operation

The unique disc movement reduces operating torque requirements, extending actuator and gearbox life.

Reduced Maintenance

Minimal seat wear leads to lower maintenance costs and reduced downtime.

Bi-Directional Sealing

The valve can effectively seal flow from either direction.

Long Operational Life

The combination of advanced sealing technology and corrosion-resistant materials ensures extended service intervals.

Fire-Safe Design

Metal-seated construction allows operation in critical fire-risk applications.

Quality Control and Testing

API 609 triple offset butterfly valves undergo rigorous inspection and testing procedures to ensure compliance with international standards.

Typical quality assurance measures include:

• Material verification
• Dimensional inspection
• Shell pressure testing
• Seat leakage testing
• Torque testing
• Visual examination
• Non-destructive testing (optional)
• Positive material identification (PMI)

Testing is generally conducted in accordance with API 598 requirements to verify valve integrity and sealing performance before shipment.

Why Choose BOPIN Triple Offset Butterfly Valves

BOPIN supplies high-quality API 609 triple offset butterfly valves designed to meet the demanding requirements of global industrial markets. Each valve is manufactured using carefully selected raw materials and advanced machining technologies to ensure precision and durability.

Key advantages include:

• Premium ASTM A351 CF8M stainless steel construction
• Precision-machined triple offset sealing system
• Reliable worm gear operation
• Strict quality control procedures
• API-compliant manufacturing standards
• Excellent corrosion resistance
• Long service life and reduced maintenance costs
• Customization options for various industrial applications
