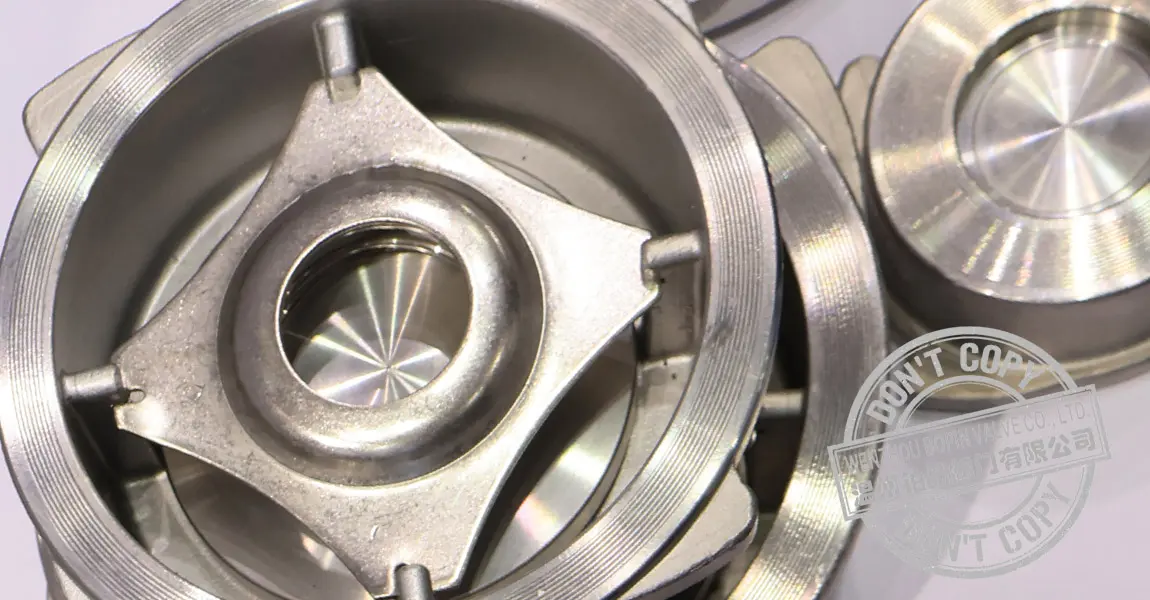

Wafer Type Stainless Steel Disco Check Valve for Pipelines

A Wafer Type Stainless Steel Disco Check Valve is a spring-assisted, non-return valve specifically designed to prevent reverse flow in piping systems. Unlike traditional SWING CHECK VALVEs that rely on gravity and flow reversal to close, a disco check valve utilizes a centrally guided disc and spring mechanism that provides rapid response and reliable sealing performance.

Its wafer-style construction allows the valve to be installed directly between pipeline flanges, making it a compact and lightweight solution for industrial applications. The stainless steel body offers excellent corrosion resistance, ensuring long service life even in aggressive environments.

Working Principle

The operating principle of a wafer type disco check valve is straightforward and highly efficient.

When fluid flows in the intended direction, the pressure generated by the medium overcomes the spring force and pushes the disc away from the seat. This creates an open flow passage, allowing the fluid to pass through the valve with minimal resistance.

As flow decreases or stops, the spring automatically returns the disc to its closed position. If reverse flow attempts to occur, the back pressure forces the disc tightly against the seat, creating a secure seal and preventing fluid from flowing backward.

Because the disc travel distance is short and the spring assists closure, the valve reacts quickly to changing flow conditions and significantly reduces the risk of water hammer.

Key Design Features

Compact Wafer Construction

The wafer-type body is one of the most significant advantages of this valve design. The valve is mounted between two flanges without requiring additional pipe sections or extensive support structures.

This compact design:

• Saves installation space
• Reduces system weight
• Simplifies maintenance
• Lowers installation costs

Stainless Steel Materials

The valve body and internal components are commonly manufactured from stainless steel grades such as:

• ASTM A351 CF8 (304 Stainless Steel)
• ASTM A351 CF8M (316 Stainless Steel)
• ASTM A182 F304
• ASTM A182 F316

These materials provide outstanding resistance to corrosion, oxidation, and chemical attack.

Spring-Assisted Disc

The spring-loaded disc enables fast closure and reliable operation. The spring is typically manufactured from stainless steel to withstand continuous exposure to moisture, chemicals, and elevated temperatures.

Precision Machined Seating Surface

Accurately machined seating surfaces ensure tight shutoff performance and reduced leakage, helping maintain system efficiency and safety.

Advantages of Wafer Type Disco Check Valves

Effective Backflow Prevention

The primary function of any check valve is to prevent reverse flow. Disco check valves provide dependable protection for pumps, compressors, and sensitive process equipment by ensuring fluid flows in only one direction.

Reduced Water Hammer

Water hammer occurs when sudden changes in fluid velocity create pressure surges within a pipeline. The spring-assisted closing action of a disco check valve significantly reduces these pressure shocks by closing rapidly before reverse flow can develop.

Low Pressure Loss

The streamlined internal geometry minimizes turbulence and flow restriction. As a result, pressure drop across the valve remains relatively low compared to some conventional valve designs.

Long Service Life

The use of stainless steel materials provides excellent durability and resistance to wear, corrosion, and thermal stress, ensuring reliable operation over many years.

Minimal Maintenance Requirements

With fewer moving parts than swing check valves, disco check valves generally require less maintenance and experience fewer operational problems.

Versatile Installation

Many wafer type disco check valves can be installed in both horizontal and vertical pipelines, provided installation guidelines are followed.

Pipeline Applications

Wafer type stainless steel disco check valves are used extensively in a wide variety of pipeline systems.

Water Distribution Systems

Municipal and industrial water systems rely on disco check valves to prevent reverse flow and protect pumping equipment from damage.

Steam Pipelines

The fast-closing action makes these valves particularly suitable for steam service, where preventing condensate backflow and water hammer is critical.

Oil and Gas Pipelines

In upstream, midstream, and downstream operations, disco check valves help maintain flow direction while protecting valuable processing equipment.

Chemical Processing Plants

The corrosion-resistant properties of stainless steel make these valves ideal for handling aggressive chemicals and process fluids.

Power Generation Facilities

Power plants utilize disco check valves in feedwater systems, cooling circuits, condensate lines, and auxiliary process piping.

Marine Applications

Ships and offshore installations benefit from the compact size, corrosion resistance, and reliability of stainless steel disco check valves.

Food and Beverage Processing

The hygienic properties of stainless steel support safe handling of process water, cleaning solutions, and food-grade fluids.

Material Selection

Selecting the appropriate material depends on operating conditions.

CF8 Stainless Steel (304)

• Good corrosion resistance
• Suitable for water, air, and general industrial fluids
• Economical solution for standard applications

CF8M Stainless Steel (316)

• Enhanced corrosion resistance
• Excellent performance in chloride-containing environments
• Suitable for chemical and marine services

Duplex Stainless Steel

• Higher mechanical strength
• Superior corrosion resistance
• Ideal for demanding offshore and chemical applications

Standards and Testing

Quality wafer type stainless steel disco check valves are typically manufactured and tested according to internationally recognized standards, including:

• API 594
• ASME B16.34
• MSS SP-125
• EN 12516
• EN 12266-1
• ISO 5208
• EN 1092-1
• DIN 3202

These standards ensure consistent quality, dimensional accuracy, pressure integrity, and operational reliability.

Installation Considerations

Proper installation is essential for optimal valve performance.

Important installation practices include:

• Verify flow direction before installation.
• Ensure flange faces are clean and aligned.
• Tighten flange bolts evenly.
• Avoid excessive pipeline stresses.
• Follow manufacturer recommendations for orientation.

Correct installation contributes to longer valve life and improved system performance.

The Wafer Type Stainless Steel Disco Check Valve is a highly efficient and dependable solution for modern pipeline systems. Its compact wafer design, spring-assisted closure mechanism, and corrosion-resistant stainless steel construction provide excellent protection against reverse flow while minimizing pressure loss and water hammer.

Suitable for water, steam, oil, gas, chemical, marine, and industrial applications, these valves deliver reliable performance in demanding operating conditions. Their low maintenance requirements, long service life, and ease of installation make them a preferred choice for engineers and plant operators seeking efficient and cost-effective pipeline protection.

As industrial processes continue to demand higher levels of safety, efficiency, and reliability, wafer type stainless steel disco check valves remain an essential component in ensuring smooth and trouble-free pipeline operation.
