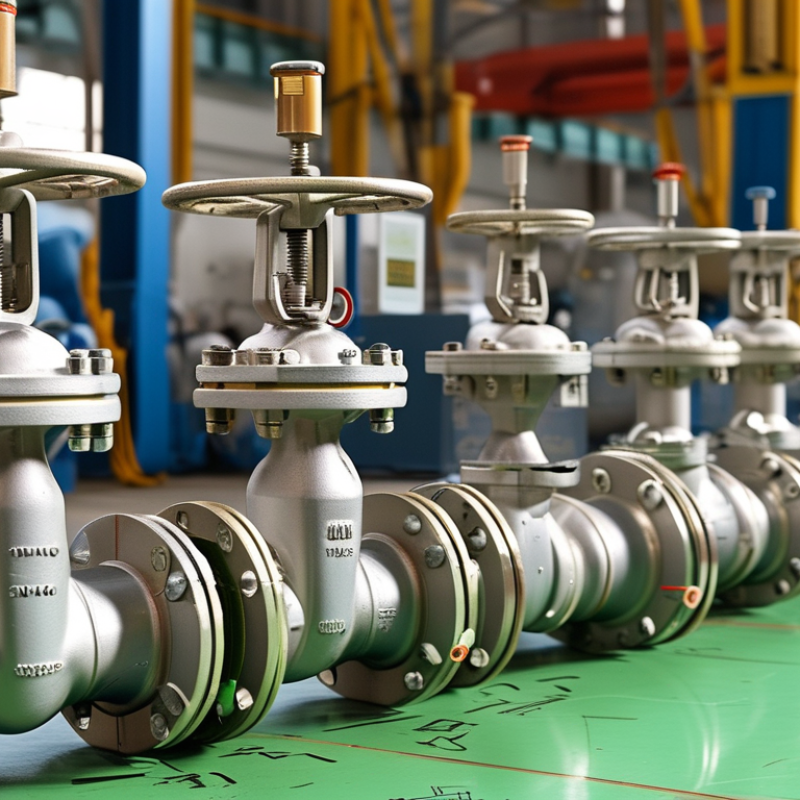

China Top DIN Bellows Sealed Globe Valves Supplier?

Choosing a China-based supplier for Din Bellows Sealed Globe Valves requires more than comparing catalog prices. These valves protect process media from external leakage through a welded metal bellows. They are widely used in chemical, pharmaceutical, petrochemical, and high-purity service. A dependable supplier should demonstrate practical manufacturing experience, not only attractive product photographs. Look for clear information about valve size, pressure class, temperature range, body material, trim, and end connections. Stainless steel and forged carbon steel options may suit different operating conditions. The choice must match the medium.

Evidence matters. Ask for material certificates, dimensional drawings, welding procedures, pressure-test records, and bellows cycle data. Factory audits can reveal machining accuracy, cleanliness, storage practices, and final inspection discipline. A reliable Chinese manufacturer should explain how it controls bellows forming, orbital welding, seat testing, and stem alignment. Small details matter. A clean weld can prevent expensive contamination problems later. Third-party inspection may also improve confidence before shipment.

Still, no supplier is automatically the best. A polished website is not proof of stable quality. Some specifications may look complete but remain unclear under real operating conditions. Buyers should confirm delivery capability, spare-part support, packaging methods, and communication during technical changes. We may overlook service responsiveness when focusing on price. That is a mistake worth reviewing. The strongest supplier combines engineering knowledge, documented quality systems, transparent communication, and consistent production performance. This guide examines the qualities that can identify China’s top Din Bellows Sealed Globe Valves supplier for demanding industrial applications.

Table of Contents [Hide]

1 What Is a DIN Bellows-Sealed Globe Valve?

2 Which DIN Standards Cover PN16–PN40 Globe Valves?

3 How Do DN15–DN300 Bellows Valves Prevent Fugitive Emissions?

4 How Are Bellows Valves Tested Under ISO 15848-1 and EN 13709?

5 How to Evaluate China Suppliers by Materials, QA, and Certification

What Is a DIN Bellows-Sealed Globe Valve?

A DIN bellows-sealed globe valve is an industrial shutoff valve designed to control fluid flow while limiting stem leakage. “DIN” refers to dimensional and design practices used in German and European standardization. The valve uses a rising stem, a disc, and a metal bellows surrounding the stem. As the handwheel turns, the disc moves toward or away from the seat. The bellows flexes during operation and forms a sealed barrier between the process fluid and the outside environment.

This construction is useful when emissions, contamination, or hazardous media require careful control. It is often selected for steam, hot oil, vacuum service, chemical processing, and other demanding systems. A properly engineered bellows must match the pressure, temperature, stroke, and cycle frequency. Material selection also matters. Stainless steel may suit corrosive service, but it is not automatically suitable for every fluid. That assumption causes trouble.

From practical maintenance experience, seat damage is not always the first warning. Operators may notice a stiff handwheel, unusual noise, or unstable flow before visible leakage appears. Inspectors should check flange alignment, weld quality, stem movement, and bellows condition. Do not force the handwheel. A damaged bellows can remain unnoticed until repeated cycling exposes its weakness. No valve is maintenance-free. Even a well-designed DIN valve needs correct installation, measured operation, and periodic inspection records.

Which DIN Standards Cover PN16–PN40 Globe Valves?

For a China-based supplier of DIN bellows sealed globe valves, standard selection matters more than appearance. PN16 to PN40 ratings identify nominal pressure levels, not permanent working pressure at every temperature.

DIN EN 13709 is the main standard for industrial globe and globe stop-check valves. It covers design, materials, pressure-temperature ratings, and functional requirements. DIN EN 12516 addresses valve shell strength and pressure design. This standard helps engineers verify wall thickness and pressure resistance.

Connection details require separate references. DIN EN 1092-1 defines flange dimensions, facing types, and pressure designation for PN16, PN25, and PN40 systems. DIN EN 558 controls face-to-face dimensions, supporting replacement planning. DIN EN 12266 specifies pressure testing, including shell and seat tests. Small details matter.

A common mistake is treating PN40 as a constant 40-bar operating limit. Temperature, fluid properties, body material, and sealing design can reduce the allowable pressure. Bellows construction also needs inspection for fatigue, weld quality, and stroke movement. DIN 3356 may appear on older documents, but current projects often use its European replacements. Always compare the valve datasheet with the project’s exact edition and service conditions.

How Do DN15–DN300 Bellows Valves Prevent Fugitive Emissions?

DIN bellows sealed globe valves in DN15–DN300 sizes control fugitive emissions by isolating the moving stem from the process fluid. A welded metal bellows surrounds the stem inside the bonnet. It flexes during opening and closing, while the stem remains outside the pressure boundary. This design removes the usual packing leakage path.

In practical valve inspections, technicians cycle the stem repeatedly and check the bonnet area with helium or approved leak-testing equipment. They also examine weld quality, bellows material, stem alignment, and gasket compression. A small DN15 valve may experience frequent throttling, while a DN300 valve faces greater thermal movement and operating loads. Both require correct sizing and careful installation.

The bellows is not immortal. Repeated over-stroking, vibration, corrosion, or incorrect pressure-temperature service can cause fatigue cracks. A secondary packing arrangement may reduce release after bellows failure, but it cannot replace proper design. Reliable suppliers should provide material certificates, pressure test records, dimensional checks, and traceable inspection results. An experienced engineer also reviews valve orientation and pipeline support before commissioning. A clean drawing is not enough. Loose pipework or forced alignment can shorten bellows life and quietly weaken emission control.

How Are Bellows Valves Tested Under ISO 15848-1 and EN 13709?

When evaluating a China-based supplier of DIN bellows sealed globe valves, test evidence matters more than polished photographs. ISO 15848-1 evaluates fugitive emissions during mechanical and thermal cycles. The test assembly uses a defined medium, controlled temperature, and calibrated detection equipment. Operators record leakage around the stem sealing area, where small failures often begin. The valve is cycled under specified pressure and temperature conditions. Tiny readings matter.

EN 13709 addresses steel globe and globe-stop valves, including design, pressure, and functional requirements. Its pressure tests typically cover the pressure-containing shell and seat closure. A bellows valve should also demonstrate bellows integrity under relevant pressure conditions. ISO 15848-1 and EN 13709 are related, but they are not interchangeable certificates. One focuses strongly on external emissions during cycling. The other sets broader valve requirements. Confusing them creates weak purchasing decisions.

Reliable testing requires a traceable valve serial number, material records, calibrated instruments, and an unaltered report. Ask for the cycle count, test temperature, pressure, leakage class, and acceptance criteria. Check whether the tested configuration matches the supplied DIN design. A thicker bellows, different packing, or revised stem can change performance. In practice, laboratory results may look excellent while installation conditions remain harsher. That gap deserves attention. I would also review weld quality, bellows forming marks, and the final seat test before approval. Details are easy to miss.

China Top DIN Bellows Sealed Globe Valves Supplier? - How Are Bellows Valves Tested Under ISO 15848-1 and EN 13709?

Test Dimension	ISO 15848-1	EN 13709	Typical Test Evidence for a Bellows-Sealed Globe Valve	Acceptance or Reporting Point
Primary purpose	Classification and type testing of industrial valves for fugitive emissions from the valve stem or shaft and body joints.	Design and manufacturing requirements for steel globe and stop-and-check valves, including pressure-containing and functional requirements.	Use ISO 15848-1 for stem-seal and body-joint emission qualification, and EN 13709 for the valve’s applicable design and pressure-test requirements.	The applicable edition, valve design, pressure rating, temperature range, and purchaser specification should be stated in the test dossier.
Valve configuration	Test piece is normally a representative production-type valve with the same sealing arrangement, materials, stem finish, packing arrangement, and body-joint design as the intended product.	Applies to steel globe and stop-and-check valve designs covered by the standard; the valve type, nominal size, pressure designation, and end connection are identified.	Record nominal size, pressure class or PN, body material, bonnet construction, bellows material, stem material, end connection, and actuator arrangement.	The tested configuration should be traceable to drawings, bill of materials, manufacturing procedures, and serial or test-piece identification.
Test medium	Fugitive-emission testing uses a specified tracer gas, commonly helium or methane, with the selected detection method and calibration procedure recorded.	Pressure tests use a suitable liquid or gas as permitted by the applicable pressure-test procedure; seat and shell testing are normally evaluated against the relevant valve pressure-test requirements.	Document the gas or liquid, purity where relevant, temperature, stabilization time, detector type, calibration status, and test laboratory conditions.	Test results are valid only when the selected medium, instruments, calibration, and measurement method meet the applicable procedure.
Fugitive-emission measurement	Measures leakage from the stem or shaft sealing area and external body joints during the prescribed test sequence.	EN 13709 is not primarily a fugitive-emission classification standard; leakage-control qualification should be supported by an applicable emission test report such as ISO 15848-1.	Scan the stem/bonnet area, bonnet gasket or joint, body joints, and other potential external leakage paths with a calibrated instrument or approved collection method.	Report the measured leakage rate and the applicable ISO 15848-1 tightness class rather than describing the valve only as “leak-free.”
Mechanical cycling	Uses defined mechanical endurance classes: CO1: 205 cyclesCO2: 1,500 cyclesCO3: 2,500 cycles.	Requires the valve to operate correctly and satisfy the relevant design and functional requirements; it does not replace ISO 15848-1 fugitive-emission cycling classification.	Operate the valve through the specified open/close sequence while monitoring stem or shaft emissions and, where applicable, seat performance.	The selected endurance class, number of cycles, actuator or handwheel method, stroke condition, and any retightening or adjustment must be recorded.
Temperature condition	Classifies performance using the temperature range selected for the type test. The test temperature must be stated with the leakage classification.	Valve materials, pressure-temperature ratings, and design suitability are considered according to the applicable designation and product requirements.	Record ambient or elevated temperature, low-temperature condition where applicable, valve temperature, stabilization time, and bellows material compatibility.	A test performed at room temperature should not automatically be treated as qualification for cryogenic or high-temperature service.
Bellows integrity	Evaluates external emissions from the complete valve assembly during the specified mechanical and thermal sequence; it does not by itself define every bellows manufacturing inspection.	Supports verification of the valve’s pressure-containing and functional design; bellows construction and inspection details should be specified in the product documentation.	Where required by the purchase specification, inspect formed welds and bellows assemblies using suitable methods such as dimensional inspection, pressure testing, or helium leak testing.	The report should distinguish bellows-element integrity results from stem-seal, bonnet-joint, and body-joint fugitive-emission results.
Shell pressure test	Not a substitute for the valve shell pressure test required by the applicable product or pressure-test standard.	Verifies pressure-containing boundary integrity using the applicable shell-test procedure and pressure associated with the valve designation.	Test the body and pressure boundary before final acceptance, with the test pressure, duration, medium, temperature, and observed leakage recorded.	No visible external leakage or pressure-boundary failure is permitted under the applicable acceptance criteria.
Seat and closure test	Fugitive-emission classification does not replace internal seat-leakage testing.	Requires verification of closure performance in accordance with the applicable valve pressure-test procedure and specified direction or directions of testing.	Test the globe valve in the required closed position and document upstream pressure, downstream condition, test duration, leakage method, and seat result.	Acceptance depends on the applicable product, pressure-test, and purchaser requirements; use the specified leakage rate rather than an undefined “zero leakage” claim.
Backseat test	Not the principal focus of ISO 15848-1 emission classification.	Where the valve design includes a backseat, verify the backseat function and leakage performance according to the applicable valve test requirements.	Operate the valve to the specified backseat position and record the test pressure, duration, and observed leakage.	State clearly whether the backseat is intended for isolation during packing maintenance; it should not be confused with the bellows seal.
Actuator and operating torque	Operating forces and actuator settings must permit the specified cycling sequence without compromising the emission test.	Valve operation, travel, direction, and functional suitability are checked for the selected handwheel, gearbox, or actuator arrangement.	Record actuator type, supply pressure or torque setting, open/close time where relevant, stem travel, and any abnormal friction or seizure.	Any adjustment made during testing must be documented because it can affect the validity of the emission classification.
Calibration and traceability	Leak detectors, pressure instruments, temperature sensors, cycle counters, and other measuring equipment require suitable calibration and traceability.	Pressure gauges and test equipment must be suitable for the required range and maintained with documented calibration status.	Include instrument identification, calibration date, accuracy or resolution, reference standard, operator, laboratory, and test date.	Incomplete calibration or instrument records can make an otherwise acceptable test report difficult to verify.
Final test report	Should identify the ISO classification, tracer gas, temperature class, mechanical class, measured leakage, test sequence, and test-piece details.	Should identify the valve designation, materials, pressure tests, functional tests, acceptance criteria, and applicable test documents.	Compile drawings, material certificates, welding or forming records where applicable, inspection reports, pressure-test charts, emission data, and nonconformance records.	A credible supplier qualification package links every result to a defined valve configuration and an identified standard edition.
Key purchasing check	Ask for the exact ISO 15848-1 classification, such as the reported tightness class, mechanical class, and temperature designation.	Ask for confirmation of conformity to the relevant EN 13709 design and pressure-test requirements for the specified valve type and rating.	Verify that the report covers a bellows-sealed globe valve with comparable size, rating, materials, bellows design, bonnet arrangement, and actuator conditions.	Do not accept a generic certificate as proof that every size, pressure rating, temperature range, or construction has been tested.

Important: ISO 15848-1 and EN 13709 address different aspects of valve verification. ISO 15848-1 is used primarily for fugitive-emission type classification, while EN 13709 addresses steel globe and stop-and-check valve design and manufacturing requirements. The exact test pressure, leakage limit, temperature designation, and acceptance criteria must be taken from the applicable standard edition and the valve’s specified pressure-temperature rating.

How to Evaluate China Suppliers by Materials, QA, and Certification

Evaluating a China DIN bellows sealed globe valve supplier starts with material control. Request the body grade, bellows alloy, stem material, and packing specification. For corrosive service, 316L or 316Ti bellows may outperform standard stainless steel. Carbon steel bodies can reduce cost, but temperature and fluid compatibility must be verified. Ask for heat numbers and EN 10204 3.1 material certificates. Ask for evidence.

Quality assurance should be visible, not promised. The ISO Survey 2023 recorded 1,265,216 ISO 9001 certificates worldwide, but certification alone does not prove valve performance. Review the supplier’s inspection and test plan, calibration records, welding qualifications, and nonconformance process. Request shell and seat test results under DIN EN 12266 or API 598, where applicable. Bellows cycle testing deserves attention because hidden fatigue can develop after repeated operation. Numbers matter. A factory tour or witnessed inspection can reveal inconsistent machining, poor storage, or unclear traceability.

Certification must match the destination and service risk. Check whether the supplier can support pressure equipment requirements, CE-related documentation, or other applicable regional rules. Confirm design calculations, drawings, pressure ratings, and final inspection records before ordering. Independent inspection can verify chemical composition and leakage performance. Some suppliers provide attractive certificates with weak technical evidence. That is uncomfortable, but common enough to investigate. Do not guess. Compare three complete document packages, not three price sheets.

How to Evaluate China DIN Bellows Sealed Globe Valve Suppliers

Use this reference weighting to compare suppliers without relying on company names or brand claims. Material compliance, quality assurance, and certification should be verified through traceable documents, inspection records, and applicable international standards.
