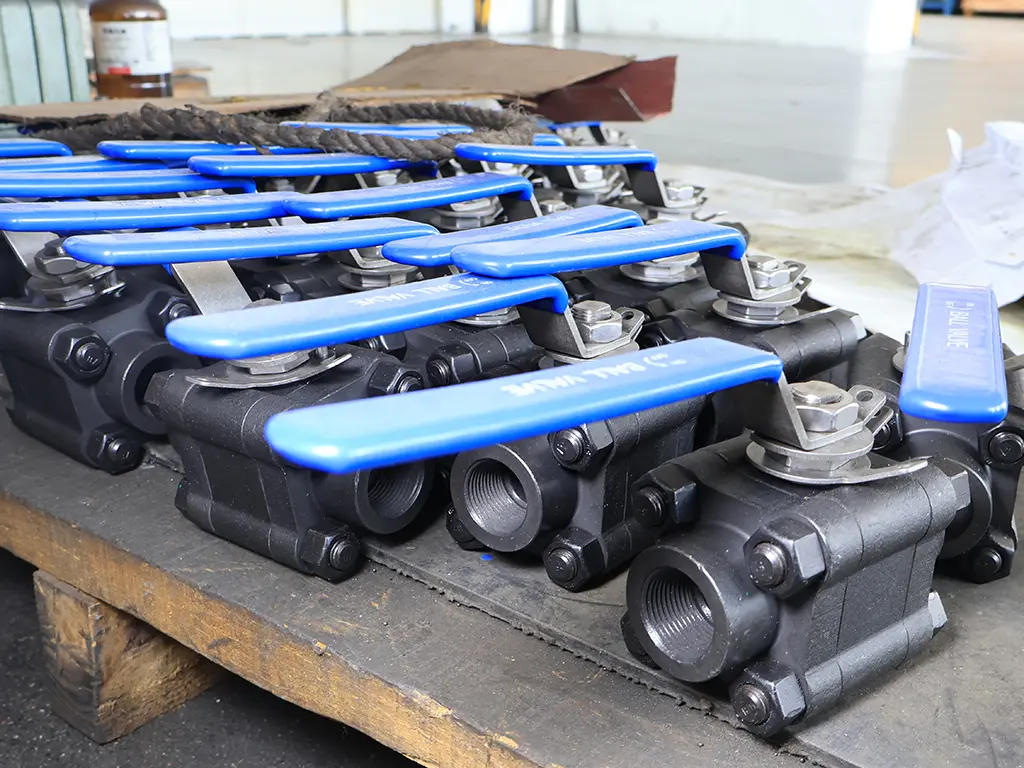

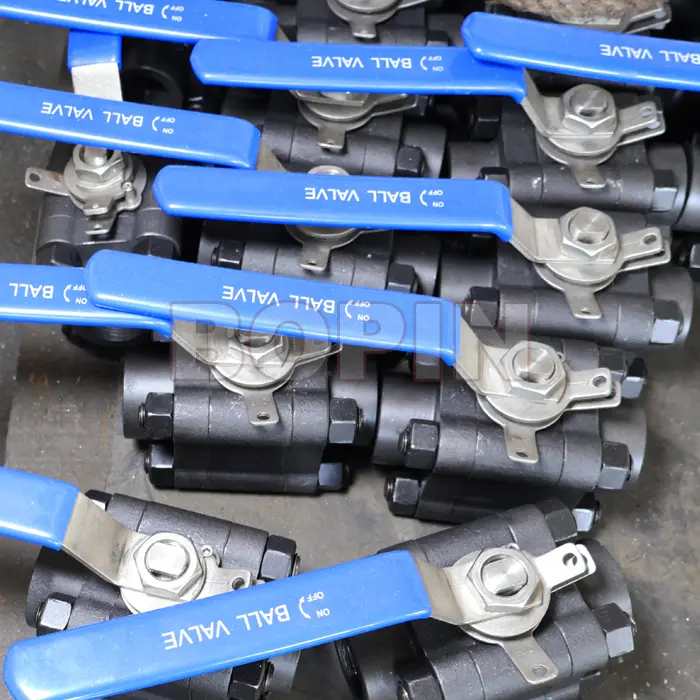

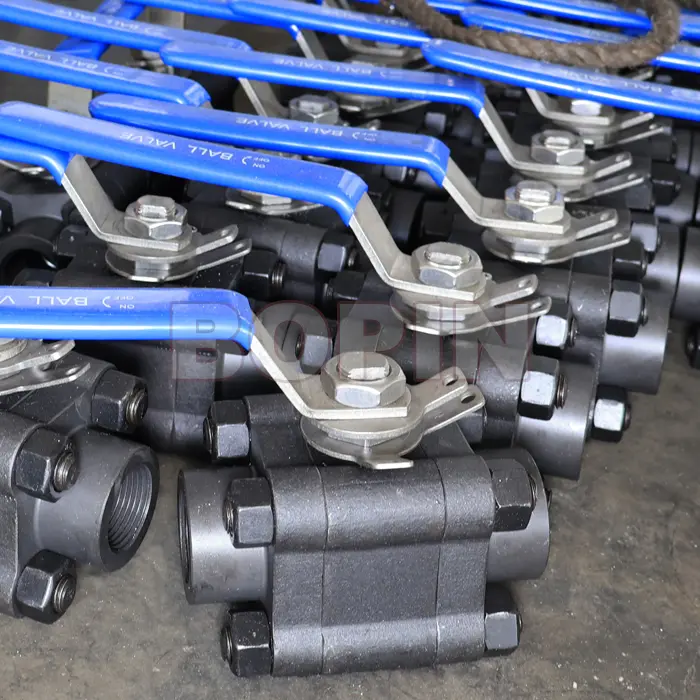

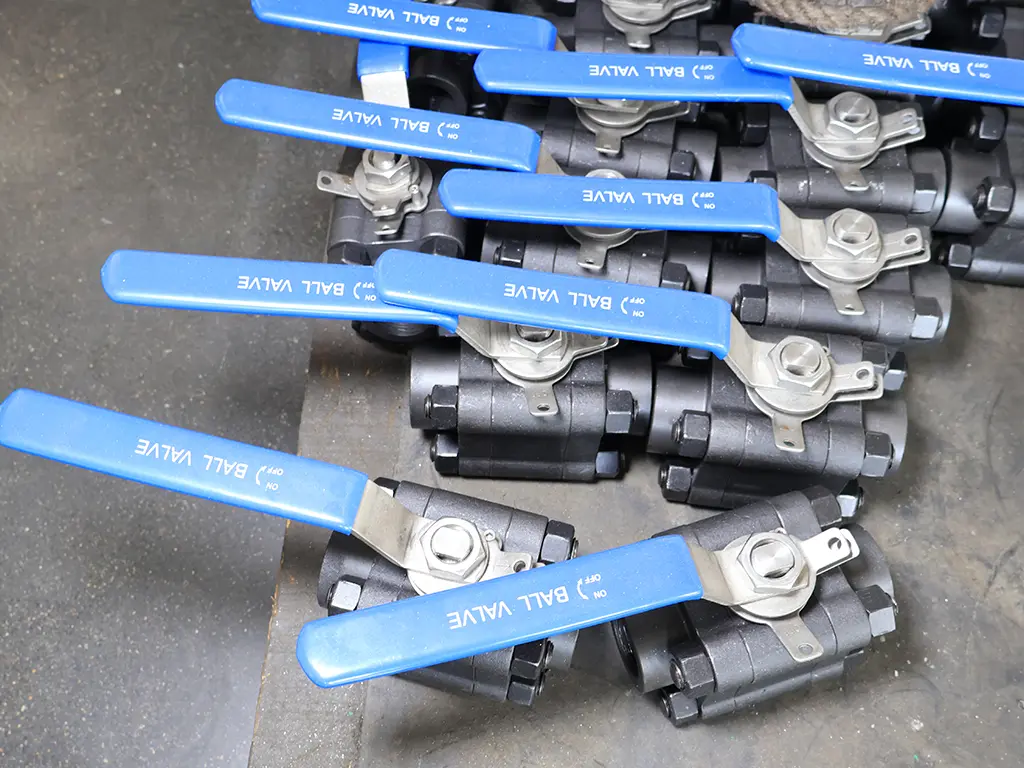

THREADED END FORGED STEEL A105 3PC FORGED STEEL BALL VALVES
What is a Forged Steel A105 Ball Valve?
A forged steel A105 ball valve is made from carbon steel (ASTM A105) which is a high-quality, forged material. Forging improves the material's strength, toughness, and resistance to failure under extreme operating conditions. This type of valve is designed for high-pressure and high-temperature service, making it ideal for demanding environments.
The ASTM A105 is a carbon steel grade that is often used for valves, flanges, and fittings in industrial applications. It is known for its ability to withstand pressures of up to 2000 psi, with resistance to corrosion and cracking. These valves are often used in industries such as oil & gas, chemical, power, and water treatment, where both performance and safety are paramount.

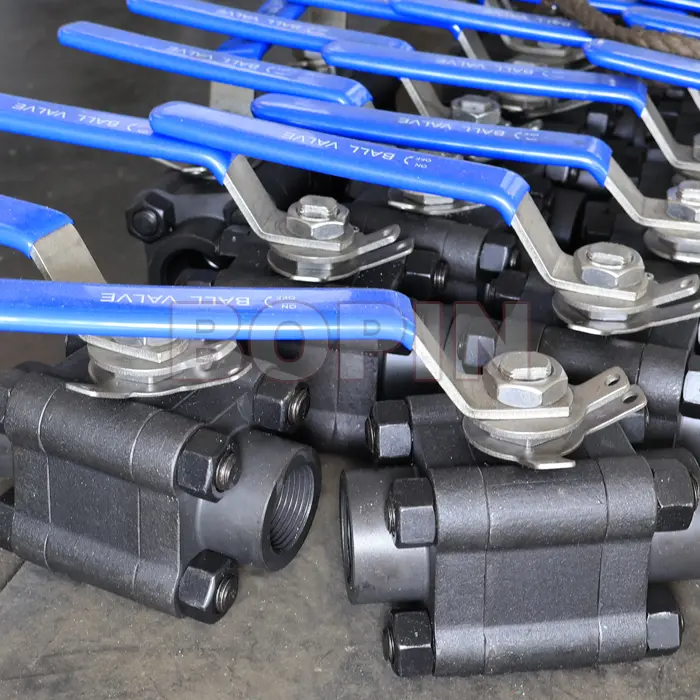

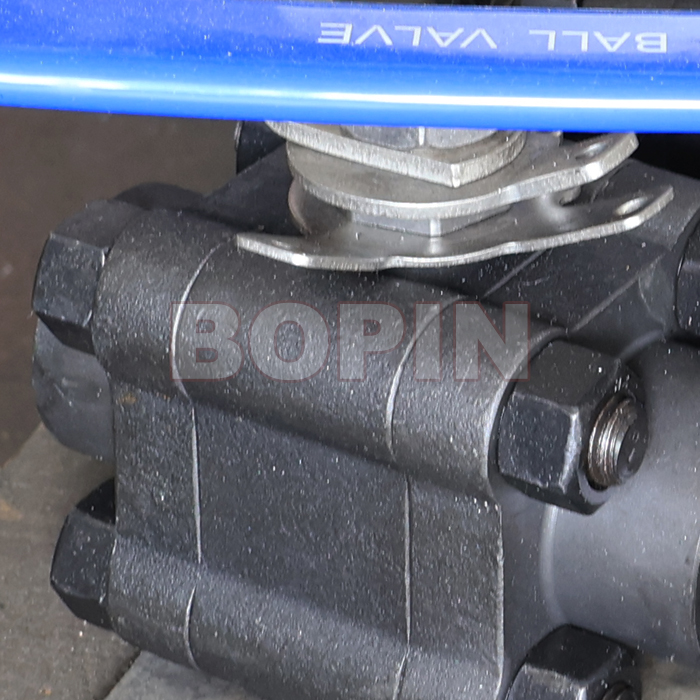

What is a 3PC (Three-Piece) Design?
The 3PC design refers to the construction of the valve body. As mentioned earlier, a three-piece ball valve is made up of three parts:
Body: This is the main part of the valve that contains the valve ball. It also houses the valve's internal components and connects the valve to the piping system.
End Caps: These are the parts of the valve that form the ends, where the valve connects to the pipe system. The end caps are typically threaded, welded, or flanged, depending on the design and the application.
The three-piece design offers a significant advantage in terms of flexibility and ease of maintenance. Unlike a one-piece or two-piece valve design, the 3PC valve allows for easy disassembly, which makes it more suitable for maintenance or replacement of internal components, without having to disturb the piping system. This is especially important in systems where regular maintenance or inspections are required.

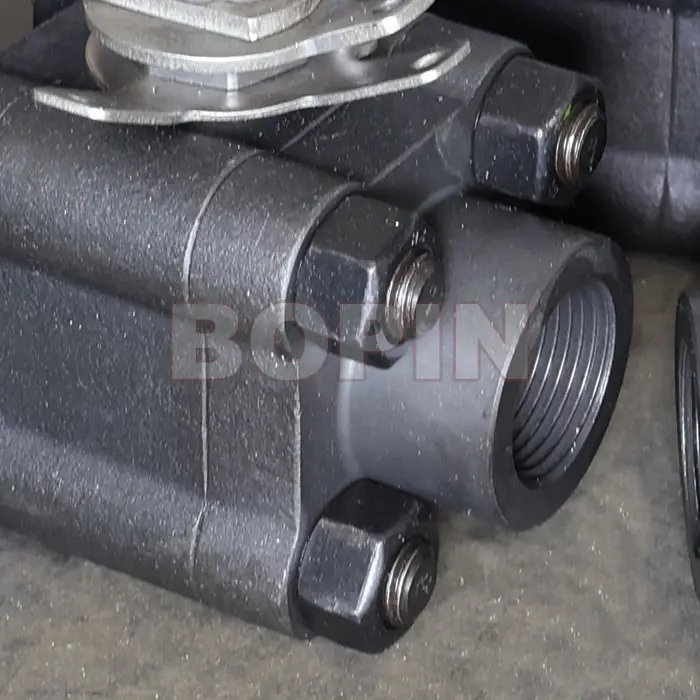

Threaded End Connections
Threaded end connections are a common feature in many industrial valves, including ball valves. Threaded ends allow the valve to be connected to the piping system using threaded fittings, typically with male or female threads. The threaded connection offers several benefits:
Ease of Installation: Threaded connections are relatively easy to install and require less time and labor compared to welding or flanged connections.
No Welding Required:
Threaded connections eliminate the need for welding, which can be time-consuming and potentially introduce weaknesses to the piping system. Threaded valves can be assembled and disassembled without the need for welding equipment.
Cost-Effective:
Threaded end ball valves are generally more affordable compared to flanged or welded end valves due to the simpler installation process.
However, threaded connections are typically used in lower pressure applications compared to welded or flanged valves. For extremely high-pressure systems, welded or flanged valves are often preferred for additional strength and integrity.
Key Features of Threaded End Forged Steel A105 3PC Ball Valves
Material Strength and Durability: The forged steel construction ensures a high level of durability and strength. The A105 material offers excellent resistance to thermal cycling, corrosion, and mechanical stress, making it ideal for harsh environments where reliability is essential.
Precision and Sealing: Ball valves are known for their precise flow control. The A105 forged steel construction, combined with the three-piece design, ensures that these valves provide reliable, tight sealing under a wide range of conditions. This makes them ideal for industries that require exact flow regulation and minimal leakage
Flexibility and Maintenance: One of the biggest advantages of the 3PC design is its flexibility. The valve can be easily disassembled for cleaning, inspection, or replacement of internal components. This makes maintenance and repairs much simpler compared to valves with more rigid designs. It also allows the valve to be serviced without removing the entire valve body from the piping system.
Threaded End Connections for Easy Installation: The threaded end design simplifies the installation process. The valve can be easily screwed into place, reducing installation time and avoiding the need for welding or specialized equipment. Threaded ball valves are also easily replaceable, allowing for quick swaps during maintenance
Versatility in Application: Forged steel A105 3PC ball valves with threaded ends can be used in a wide variety of applications across different industries, including oil and gas, power generation, chemical processing, water treatment, and HVAC systems. They are versatile enough to handle both high and low-pressure applications, making them suitable for a wide range of fluid and gas control tasks.
Applications of Threaded End Forged Steel A105 3PC Ball Valves
The threaded end forged steel A105 3PC ball valves are employed in several industries, including:
Oil & Gas Industry: These valves are extensively used in the oil and gas industry for applications such as upstream exploration, offshore drilling, transportation pipelines, and downstream refining processes. Their ability to withstand high-pressure conditions and maintain precise flow control makes them a crucial part of the system.
Chemical and Petrochemical Industry: In chemical processing plants, forged steel valves are used to regulate the flow of chemicals and gases, including corrosive substances. The A105 material provides the necessary resistance to corrosion and pressure, ensuring long-term reliability in critical environments.
Water Treatment Plants: In water and wastewater treatment facilities, valves are essential for controlling the flow of water, chemicals, and other fluids. The durability and ease of maintenance of threaded end forged steel A105 3PC ball valves make them suitable for these applications.
Power Generation: Ball valves are used in power plants, including nuclear, coal, and natural gas facilities, to control the flow of steam, water, and other fluids within the system. Their reliability at high pressures and temperatures makes them a preferred choice in such applications.
HVAC Systems: HVAC systems in commercial and industrial buildings require valves that can control the flow of water, refrigerants, and other fluids. The threaded end forged steel 3PC ball valves provide an effective and durable solution for these systems.
